COMPONENTS (REMOVAL)

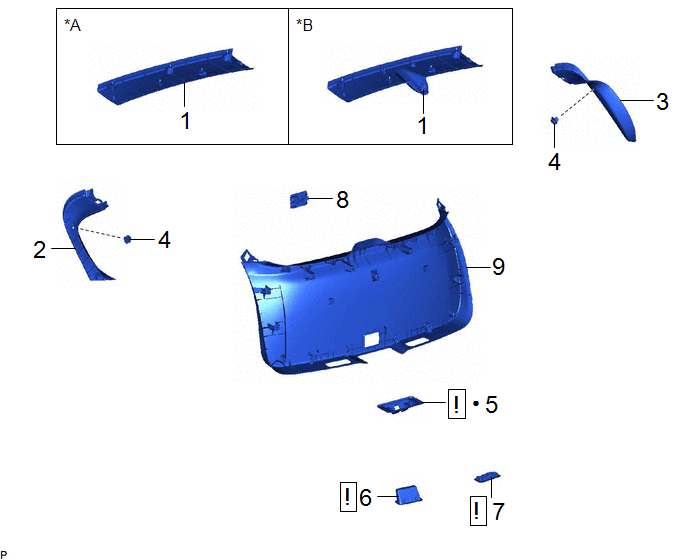

Fig 1: Back Door Outside Garnish Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR UPPER TRIM COVER	67765B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	ROPE HOOK	66311M	-	-	-
5	BACK DOOR LOCK COVER	69321	See step 5	-	-
6	BACK DOOR INSIDE HANDLE	69212C	See step 6	-	-
7	SWITCH BASE	84941A	See step 7	-	-
8	BACK DOOR SERVICE HOLE COVER	67847A	-	-	-
9	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
•	Non-reusable part	-	-

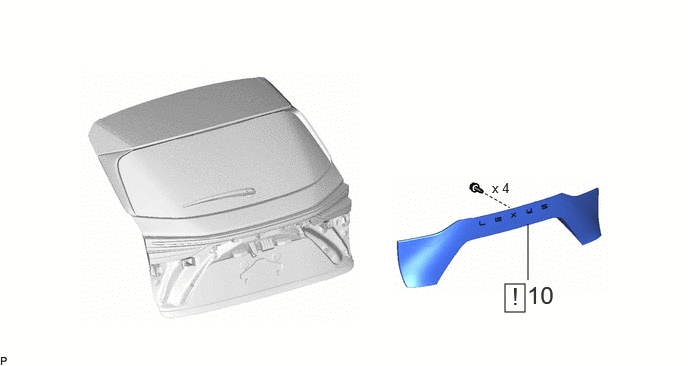

Fig 2: Back Door Outside Garnish Removal Components (2 Of 2)

Procedure		Part Name Code
10	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	-	See step 10	-	-
