Disassembly [11/2021 - ]: Procedure

  1. REMOVE NO. 4 BACK DOOR NAME PLATE
    Refer to PROCEDURE - Step 1

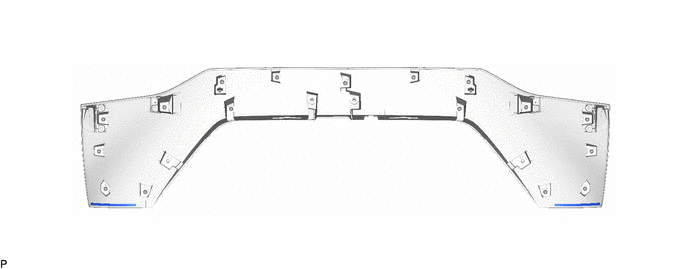

  2. REMOVE BACK DOOR GARNISH LOWER MOULDING PROTECTOR
    1. GTY1053178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

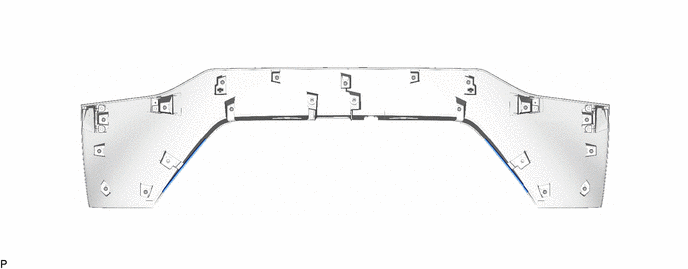

  3. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR
    1. GTY1053177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
