Caution / Notice / Hint

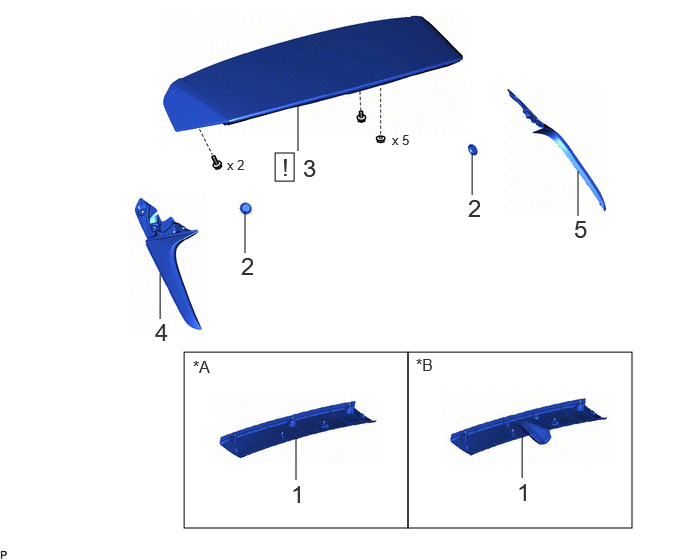

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | BACK DOOR UPPER TRIM COVER | 67765B | - | - | - |
| 2 | HOLE PLUG | - | - | - | - |
| 3 | REAR SPOILER ASSEMBLY | - | See step 3 | - | - |
| 4 | REAR SIDE SPOILER SUB-ASSEMBLY LH | 76088B | - | - | - |
| 5 | REAR SIDE SPOILER SUB-ASSEMBLY RH | 76087B | - | - | - |
| *A | w/o Digital Inner Mirror | *B | w/ Digital Inner Mirror |
