Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

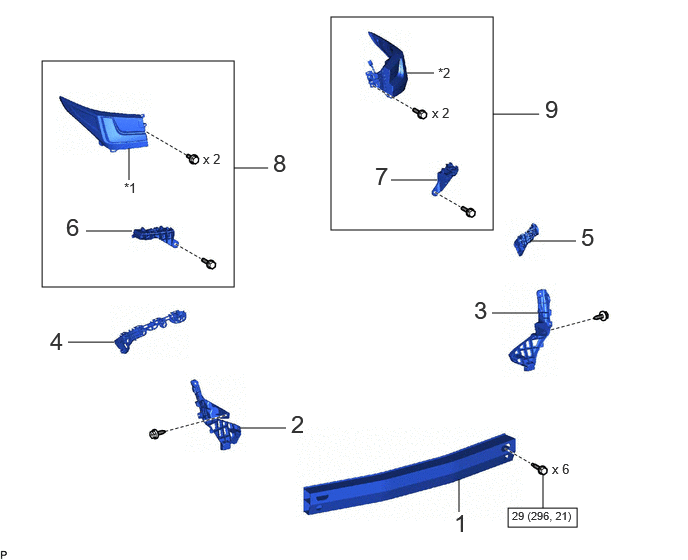

Fig 1: Rear Bumper Reassembly Components With Torque Specifications (1 Of 5)
GTY1054202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 REAR BUMPER REINFORCEMENT 52171C - - -
2 REAR BUMPER SIDE SEAL LH 52592 - - -
3 REAR BUMPER SIDE SEAL RH 52591 - - -
4 REAR BUMPER SIDE SUPPORT LH 52156A - - -
5 REAR BUMPER SIDE SUPPORT RH 52155A - - -
6 REAR BUMPER UPPER RETAINER LH 52563D - - -
7 REAR BUMPER UPPER RETAINER RH 52562E - - -
8 REAR COMBINATION LIGHT ASSEMBLY LH - - - -
9 REAR COMBINATION LIGHT ASSEMBLY RH - - - -
*1 REAR COMBINATION LIGHT SUB-ASSEMBLY LH *2 REAR COMBINATION LIGHT SUB-ASSEMBLY RH
N.m (kgf/cm, ft.lbf): Specified torque - -

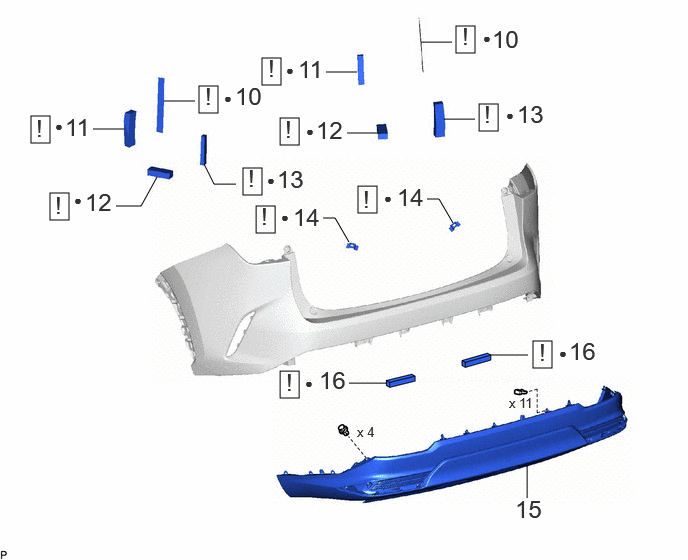

Fig 2: Rear Bumper Reassembly Components (2 Of 5)
GTY1054771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
10 NO. 1 MOULDING TAPE 75895N See step  10 - -
11 NO. 2 REAR BUMPER PAD 52461L See step  11 - -
12 NO. 3 REAR BUMPER PAD 52461M See step  12 - -
13 NO. 4 REAR BUMPER PAD 52461N See step  13 - -
14 REAR BUMPER RETAINER 52116F See step  14 - -
15 REAR BUMPER LOWER COVER 52169C - - -
16 NO. 1 REAR BUMPER PAD 52461K See step  16 - -
• Non-reusable part - -

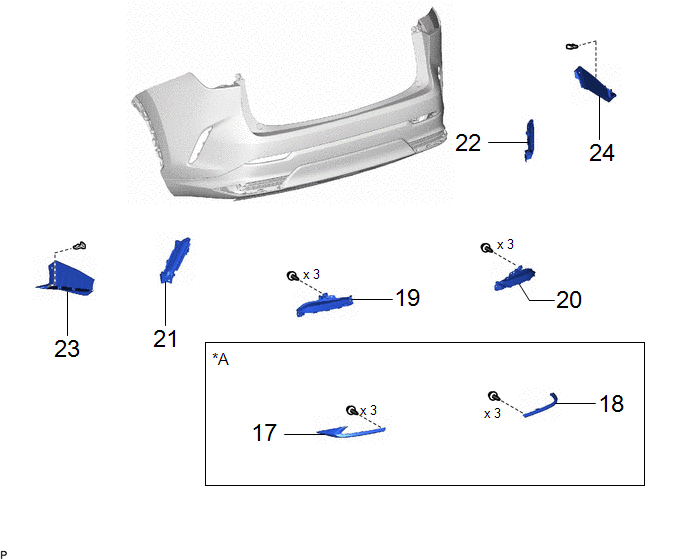

Fig 3: Rear Bumper Reassembly Components (3 Of 5)
GTY1057242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
17 REAR BUMPER LOWER RETAINER LH 52566C - - -
18 REAR BUMPER LOWER RETAINER RH 52565D - - -
19 REFLEX REFLECTOR ASSEMBLY LH 81490E - - -
20 REFLEX REFLECTOR ASSEMBLY RH 81480D - - -
21 REAR BUMPER EXTENSION LH 52153B - - -
22 REAR BUMPER EXTENSION RH 52152B - - -
23 REAR BUMPER LOWER SIDE RETAINER LH 52568C - - -
24 REAR BUMPER LOWER SIDE RETAINER RH 52567C - - -
*A except Sport Package - -

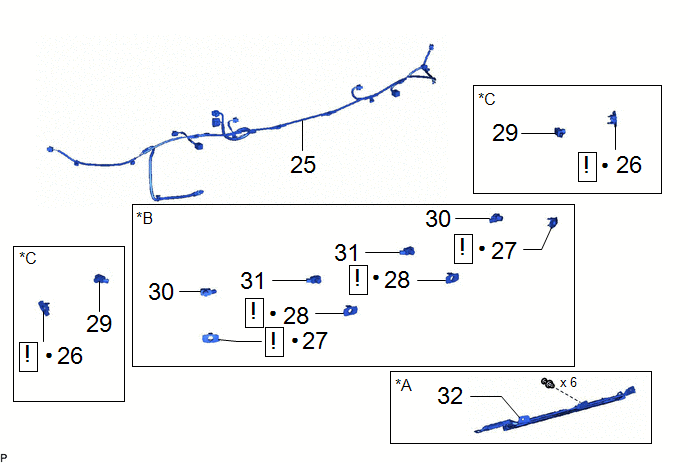

Fig 4: Rear Bumper Reassembly Components (4 Of 5)
GTY1055464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
25 NO. 2 LUGGAGE ROOM WIRE 82182 - - -
26 REAR SIDE ULTRASONIC SENSOR RETAINER 89C48C See step  26 - -
27 REAR CORNER ULTRASONIC SENSOR RETAINER 89C48A See step  27 - -
28 REAR CENTER ULTRASONIC SENSOR RETAINER 89C48B See step  28 - -
29 REAR SIDE ULTRASONIC SENSOR 89342B - - -
30 REAR CORNER ULTRASONIC SENSOR 89342 - - -
31 REAR CENTER ULTRASONIC SENSOR 89342A - - -
32 KICK DOOR CONTROL SENSOR ASSEMBLY 891B0 - - -
*A w/ Kick Sensor *B w/ Intuitive Parking Assist System
*C w/ Advanced Park - -
• Non-reusable part - -

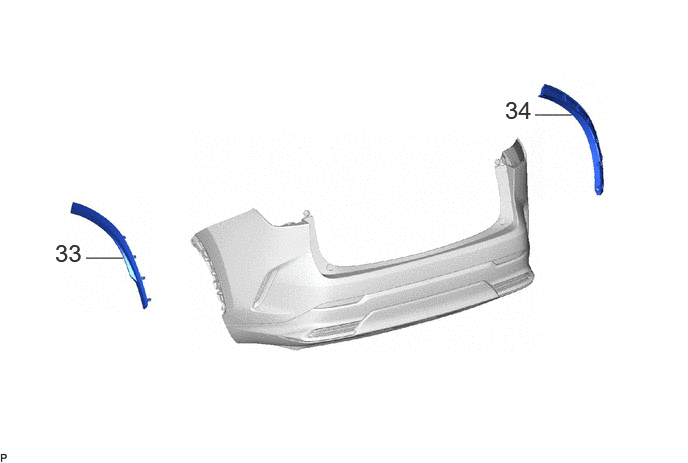

Fig 5: Rear Bumper Reassembly Components (5 Of 5)
GTY1057709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
33 QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH 75606B - - -
34 QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH 75605B - - -
