Disassembly [11/2021 - ]: Procedure

  1. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  2. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  3. REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY (w/ Kick Sensor)

    Refer to PROCEDURE - Step 5

  4. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  5. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
    Refer to PROCEDURE - Step 5
  8. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
    Refer to PROCEDURE - Step 6
  9. REMOVE REAR SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    Refer to PROCEDURE - Step 7

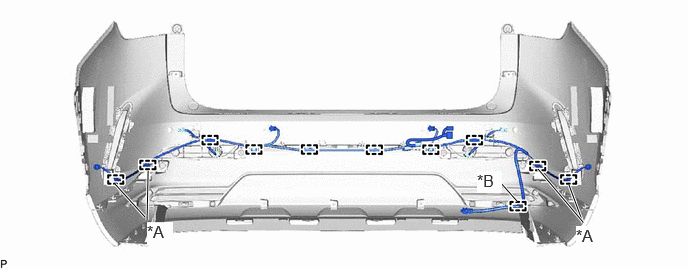

  10. REMOVE NO. 2 LUGGAGE ROOM WIRE
    1. GTY1054141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Park *B w/ Kick Sensor

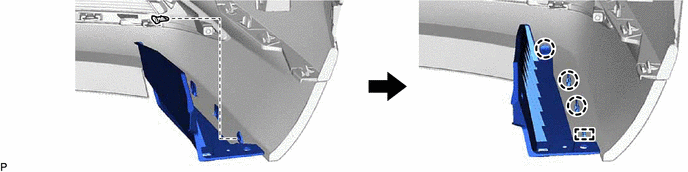

  11. REMOVE REAR BUMPER LOWER SIDE RETAINER LH
    1. GTY1054565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR BUMPER LOWER SIDE RETAINER RH
    1. Use the same procedure as for the LH side.

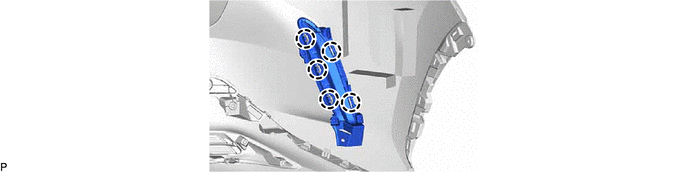

  13. REMOVE REAR BUMPER EXTENSION LH
    1. GTY1054563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR BUMPER EXTENSION RH
    1. Use the same procedure as for the LH side.

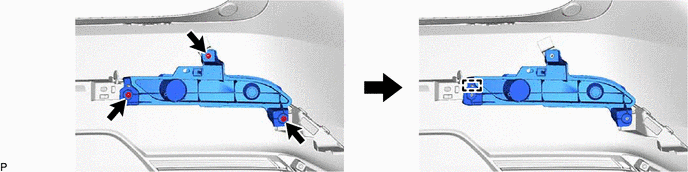

  15. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. GTY1054561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REFLEX REFLECTOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.

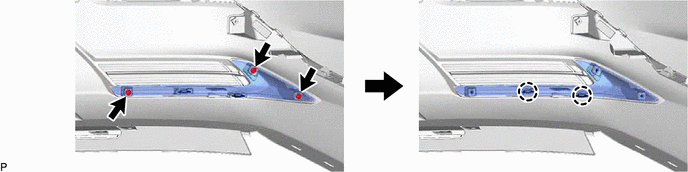

  17. REMOVE REAR BUMPER LOWER RETAINER LH (except Sport Package)
    1. GTY1055390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR BUMPER LOWER RETAINER RH (except Sport Package)
    1. Use the same procedure as for the LH side.

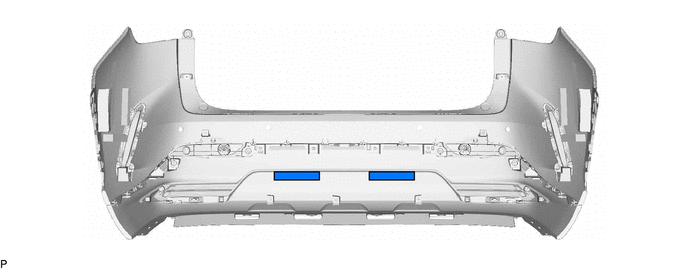

  19. REMOVE NO. 1 REAR BUMPER PAD
    1. GTY1055542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

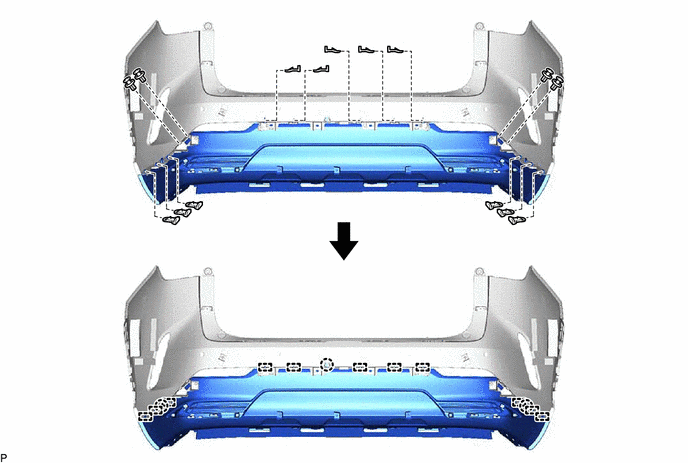

  20. REMOVE REAR BUMPER LOWER COVER
    1. GTY1054556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

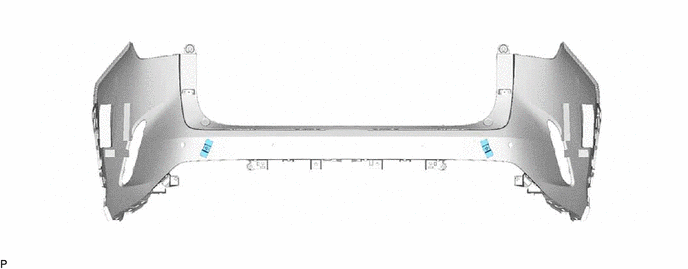

  21. REMOVE REAR BUMPER RETAINER
    1. GTY1054555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

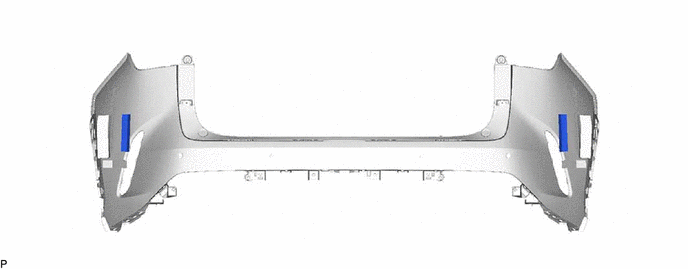

  22. REMOVE NO. 4 REAR BUMPER PAD
    1. GTY1054513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

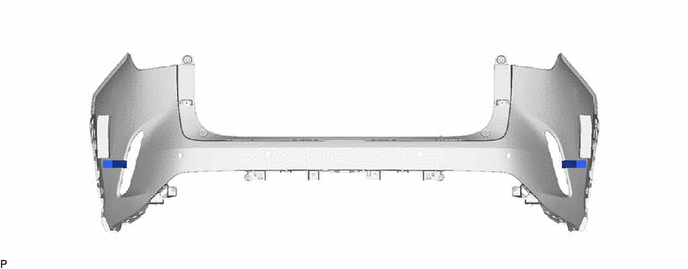

  23. REMOVE NO. 3 REAR BUMPER PAD
    1. GTY1056070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

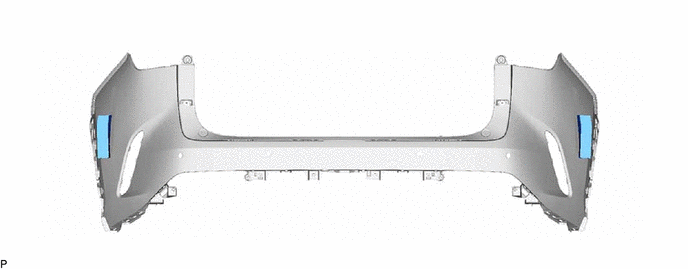

  24. REMOVE NO. 2 REAR BUMPER PAD
    1. GTY1056078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

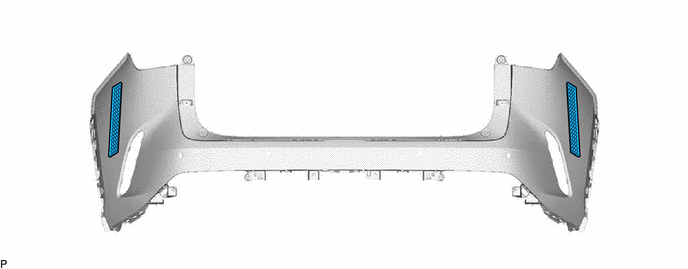

  25. REMOVE NO. 1 MOULDING TAPE
    1. GTY1056877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 2
  27. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.

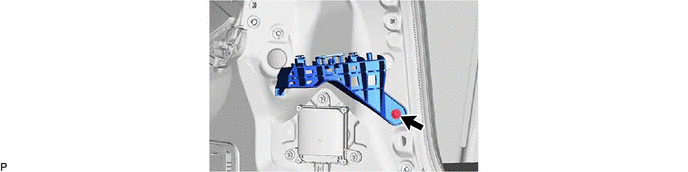

  28. REMOVE REAR BUMPER UPPER RETAINER LH

    HINT:

    Perform this procedure only when replacement of the rear bumper upper retainer is necessary.

    1. GTY1056074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR BUMPER UPPER RETAINER RH
    1. Use the same procedure as for the LH side.

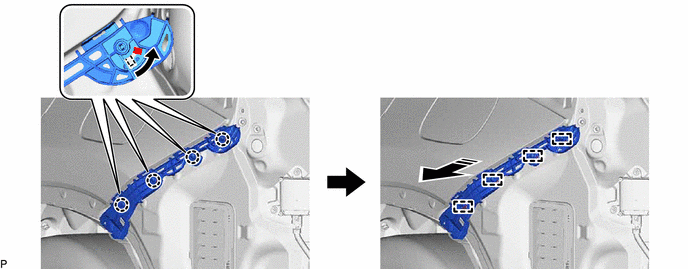

  30. REMOVE REAR BUMPER SIDE SUPPORT LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side support LH is necessary.

    1. GTY1056475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  31. REMOVE REAR BUMPER SIDE SUPPORT RH
    1. Use the same procedure as for the LH side.

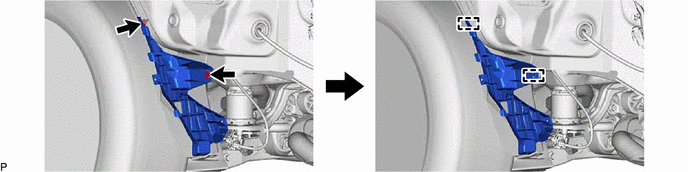

  32. REMOVE REAR BUMPER SIDE SEAL LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side seal LH is necessary.

    1. GTY1055554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR BUMPER SIDE SEAL RH
    1. Use the same procedure as for the LH side.

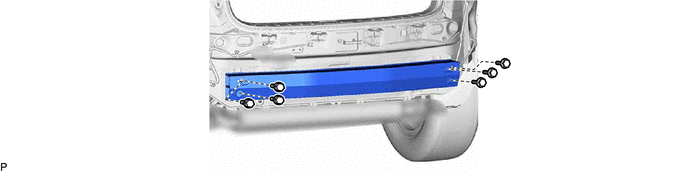

  34. REMOVE REAR BUMPER REINFORCEMENT

    HINT:

    Perform this procedure only when replacement of the rear bumper reinforcement is necessary.

    1. GTY1055553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
