COMPONENTS (REASSEMBLY)

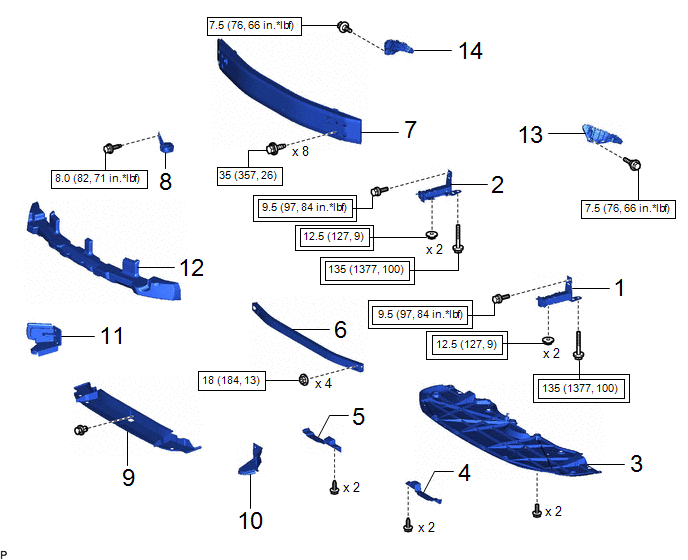

Fig 1: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ProcedureCallout - Procedure		Part Name Code
1	FRONT BUMPER EXTENSION SUB-ASSEMBLY LH	52103A	-	-	-
2	FRONT BUMPER EXTENSION SUB-ASSEMBLY RH	52102B	-	-	-
3	NO. 1 ENGINE UNDER COVER	51441	-	-	-
4	FRONT FENDER FRONT SPLASH SHIELD LH	53896B	-	-	-
5	FRONT FENDER FRONT SPLASH SHIELD RH	53895B	-	-	-
6	NO. 2 FRONT BUMPER REINFORCEMENT	52132A	-	-	-
7	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52021	-	-	-
8	VEHICLE APPROACHING SPEAKER ASSEMBLY	86570	-	-	-
9	FRONT BUMPER LOWER ABSORBER	52618	-	-	-
10	FRONT RADIATOR SIDE AIR GUIDE PLATE LH	16695A	-	-	-
11	FRONT RADIATOR SIDE AIR GUIDE PLATE RH	16691A	-	-	-
12	NO. 2 FRONT BUMPER ENERGY ABSORBER	52614	-	-	-
13	FRONT BUMPER SIDE RETAINER LH	52536	-	-	-
14	FRONT BUMPER SIDE RETAINER RH	52535	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque

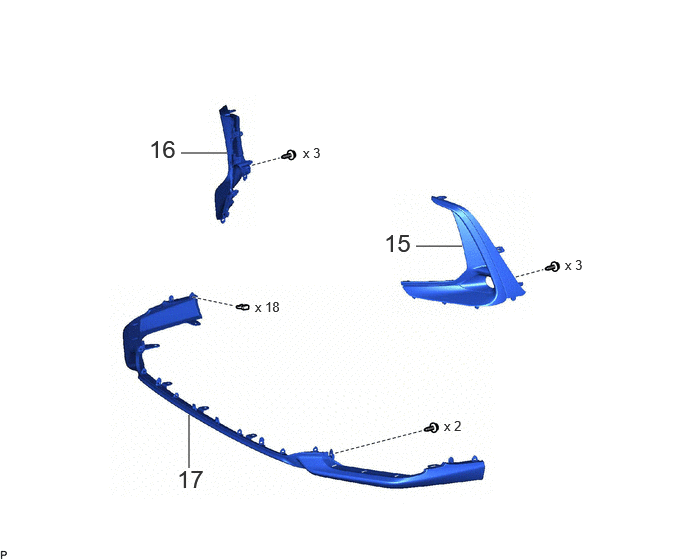

Fig 2: Front Bumper (Except Sport Package) Reassembly Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
15	RADIATOR GRILLE LOWER SIDE LH	53128E	-	-	-
16	RADIATOR GRILLE LOWER SIDE RH	53127D	-	-	-
17	FRONT BUMPER GUARD	52411	-	-	-

Fig 3: Front Bumper (Except Sport Package) Reassembly Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
18	RADIATOR SIDE AIR SEAL LH	53286F	-	-	-
19	RADIATOR SIDE AIR SEAL RH	53285N	-	-	-
20	NO. 1 RADIATOR GRILLE SEAL	53155D	-	-	-
21	FRONT BUMPER HOLE COVER LH	52128B	-	-	-
22	FRONT BUMPER HOLE COVER RH	52127D	-	-	-
23	RADIATOR GRILLE	53111	-	-	-
24	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48G	-	-	-
25	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	75311	-	-	-
26	RADIATOR INNER GRILLE	53114A	-	-	-
27	HOOD TO FRONT END PANEL SEAL	53395J	-	-	-
28	NO. 1 MOULDING TAPE	75895K	See step 28	-	-

*A	w/ Intuitive Parking Assist System	*B	w/ Radiator Side Air Seal
•	Non-reusable part	-	-

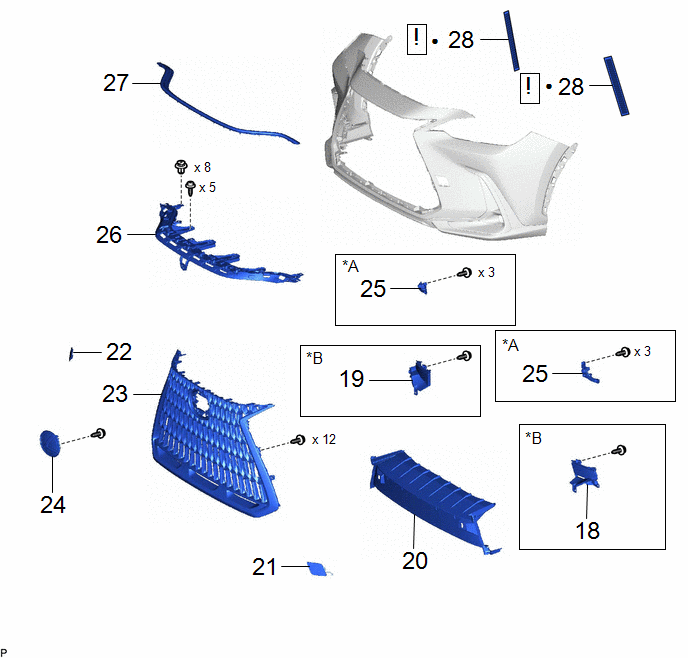

Fig 4: Front Bumper (Except Sport Package) Reassembly Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
29	FOG LIGHT MOUNTING BRACKET LH	52126D	-	-	-
30	FOG LIGHT MOUNTING BRACKET RH	52125A	-	-	-
31	FOG LIGHT ASSEMBLY LH	81220	-	-	-
32	FOG LIGHT ASSEMBLY RH	81210A	-	-	-
33	CORNERING LIGHT ASSEMBLY LH	81390E	-	-	-
34	CORNERING LIGHT ASSEMBLY RH	81360E	-	-	-

w/ Cornering Light

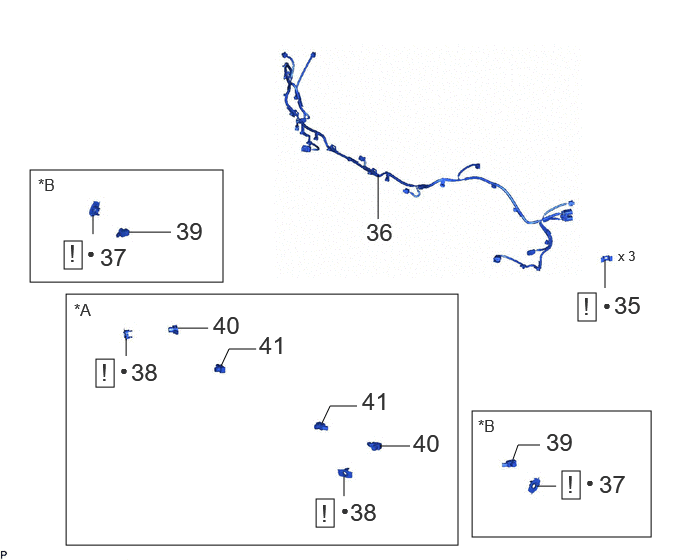

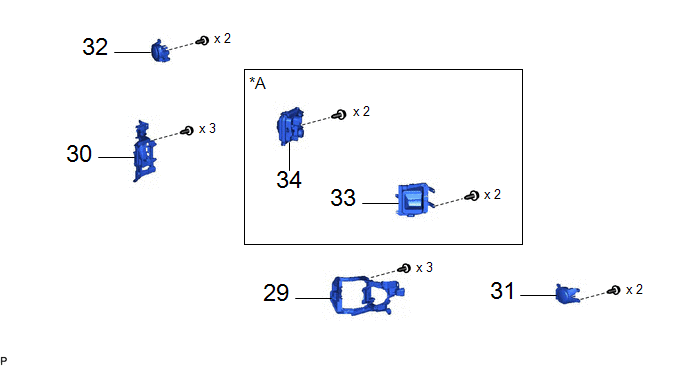

Fig 5: Front Bumper (Except Sport Package) Reassembly Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
35	FRONT ULTRASONIC SENSOR CLIP	89348X	See step 35	-	-
36	NO. 3 ENGINE ROOM WIRE	82113	-	-	-
37	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F	See step 37	-	-
38	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 38	-	-
39	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
40	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
41	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-

*A	w/ Intuitive Parking Assist System	*B	w/ Advanced Park
•	Non-reusable part	-	-

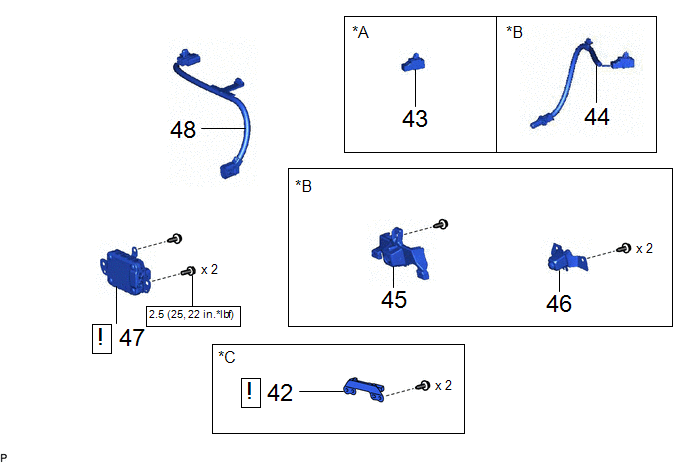

Fig 6: Front Bumper (Except Sport Package) Reassembly Components With Torque Specifications (6 Of 8)

Callout - Procedure		Part Name Code
42	REMOTE PARKING ANTENNA ASSEMBLY	893C0	See step 42	-	-
43	CONNECTOR COVER	-	-	-	-
44	TELEVISION CAMERA WIRE	86799	-	-	-
45	TELEVISION CAMERA COVER	86794B	-	-	-
46	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
47	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	See step 47	-	-
48	NO. 3 ENGINE ROOM WIRE	82113	-	-	-

*A	w/o Panoramic View Monitor System	*B	w/ Panoramic View Monitor System
*C	w/ Advanced Park	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

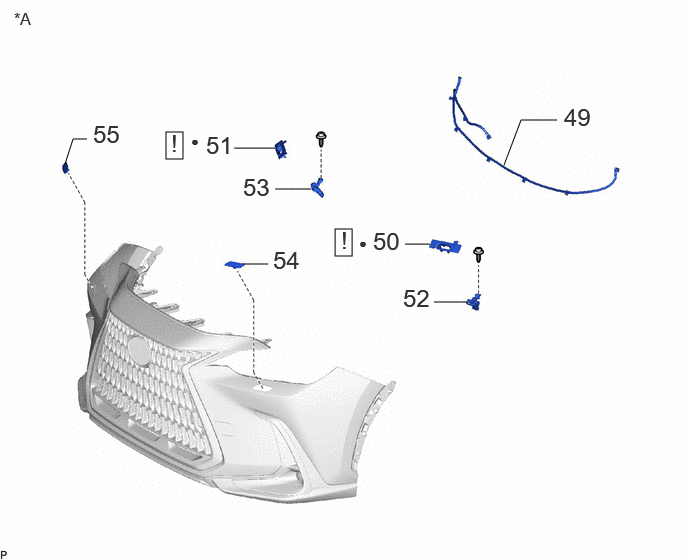

Fig 7: Front Bumper (Except Sport Package) Reassembly Components (7 Of 8)

Procedure		Part Name Code
49	WASHER HOSE	-	-	-	-
50	NO. 2 WASHER BRACKET	85362	See step 50	-	-
51	NO. 1 WASHER BRACKET	85361C	See step 51	-	-
52	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH	85208A	-	-	-
53	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH	85207A	-	-	-
54	HEADLIGHT WASHER COVER LH	85354	-	-	-
55	HEADLIGHT WASHER COVER RH	85353	-	-	-

*A	w/ Headlight Cleaner System	-	-
•	Non-reusable part	-	-

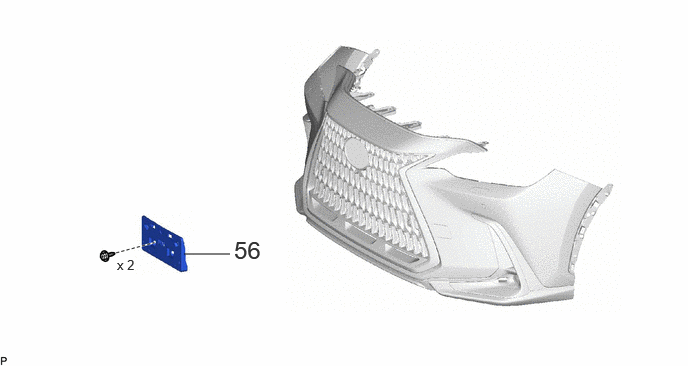

Fig 8: Front Bumper (Except Sport Package) Reassembly Components (8 Of 8)

Procedure		Part Name Code
56	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114B	-	-	-
