Removal [11/2021 - ]: Procedure

  1. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  3. REMOVE BATTERY SERVICE COVER PLATE

    Refer to PROCEDURE - Step 3 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 3 [03/2024 - ]

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 7 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 7 [03/2024 - ]

  5. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

  6. REMOVE JUNCTION BLOCK SERVICE COVER

    Refer to PROCEDURE - Step 9 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]

  7. REMOVE REAR FLOOR BOARD REAR LH

    Refer to PROCEDURE - Step 10 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 10 [03/2024 - ]

  8. REMOVE FRONT DECK FLOOR BOX

    Refer to PROCEDURE - Step 11 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 11 [03/2024 - ]

  9. REMOVE DECK BOARD SET SUPPORT

    Refer to PROCEDURE - Step 12 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 12 [03/2024 - ]

  10. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 21 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 21 [03/2024 - ]

  11. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
    1. Use the same procedure as for the No. 3 battery service cover board.

      Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ]

  12. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 34 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 34 [03/2024 - ]

  13. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 22

  14. REMOVE NO. 1 SIDE TRIM BASE COVER RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 35 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 35 [03/2024 - ]

  15. REMOVE REAR SEAT SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 37 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 37 [03/2024 - ]

  16. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 39 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 39 [03/2024 - ]
  17. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 40 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 40 [03/2024 - ]

  18. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    Refer to PROCEDURE - Step 41 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 41 [03/2024 - ]
  19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    Refer to PROCEDURE - Step 43 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 43 [03/2024 - ]

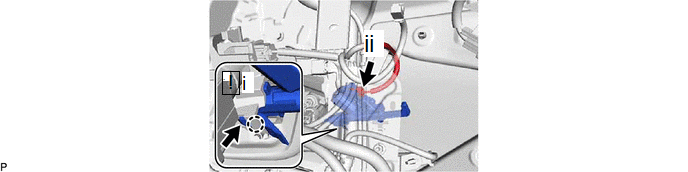

  20. REMOVE CHARGE LID LOCK WITH MOTOR ASSEMBLY
    1. GTY1054230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the stopper and disengage the claw.
      2. Disconnect the connector to remove the charge lid lock with motor assembly.
