Removal [11/2021 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 4

  4. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

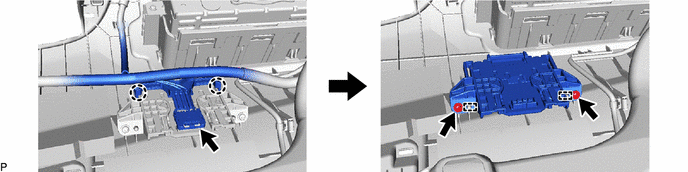

    1. GTY1072357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NAVIGATION ANTENNA ASSEMBLY

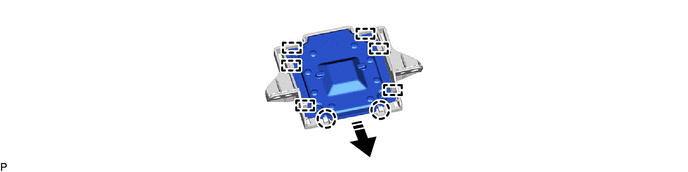

    1. GTY1072522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
