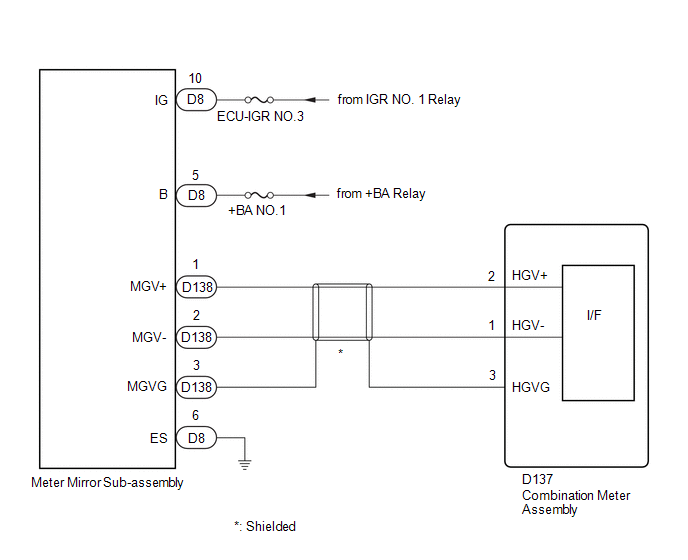

DTC B1510-87: Lost Communication with HUD Gigabit Video Interface Missing Message [11/2021 - ]: Wiring Diagram

GTY1136138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
