Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during instrument panel safety pad sub-assembly removal/installation are shown below.

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting System (EXT)	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [11/2021 - ]
Front Camera System
Adaptive High Beam System

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

WARNING:

Be sure to read Precaution thoroughly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [11/2021 - ]

COMPONENTS (REMOVAL)

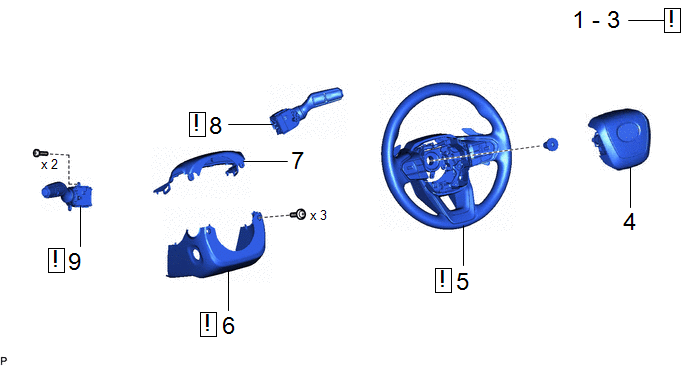

Fig 1: Instrument Panel Safety Pad Removal Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS	-	See step 2	-	-
3	ALIGN FRONT WHEELS FACING STRAIGHT AHEAD	-	See step 3	-	-
4	HORN BUTTON ASSEMBLY	45130	-	-	-
5	STEERING WHEEL ASSEMBLY	45100	See step 5	-	-
6	LOWER STEERING COLUMN COVER	45287	See step 6	-	-
7	UPPER STEERING COLUMN COVER	45286B	-	-	-
8	WINDSHIELD WIPER SWITCH ASSEMBLY	84650	See step 8	-	-
9	TURN SIGNAL SWITCH	84329	See step 9	-	-

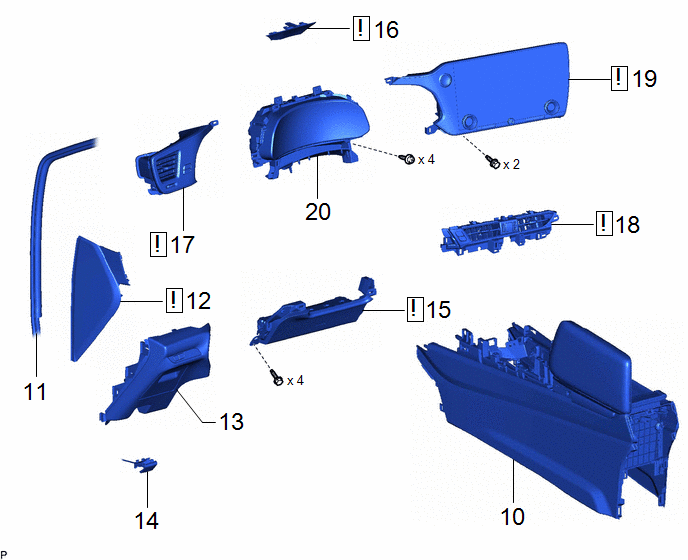

Fig 2: Instrument Panel Safety Pad Removal Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	REAR CONSOLE BOX ASSEMBLY	58910C	-	-	-
11	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	-	-	-
12	NO. 1 INSTRUMENT SIDE PANEL	55317E	See step 12	-	-
13	LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY	-	-	-	-
14	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
15	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	73900	See step 15	-	-
16	METER HOOD SUB-ASSEMBLY	55403	See step 16	-	-
17	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY	55650	See step 17	-	-
18	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY	55670A	See step 18	-	-
19	RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET	-	See step 19	-	-
20	COMBINATION METER ASSEMBLY WITH INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	-	-	-	-

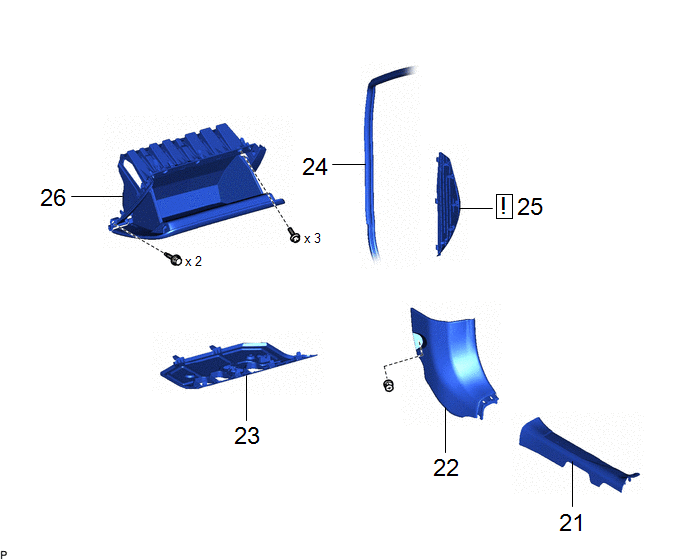

Fig 3: Instrument Panel Safety Pad Removal Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
21	DOOR SCUFF PLATE ASSEMBLY RH	67910	-	-	-
22	COWL SIDE TRIM BOARD RH	62111C	-	-	-
23	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
24	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	62311B	-	-	-
25	NO. 2 INSTRUMENT SIDE PANEL	55318F	See step 25	-	-
26	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	55303B	-	-	-

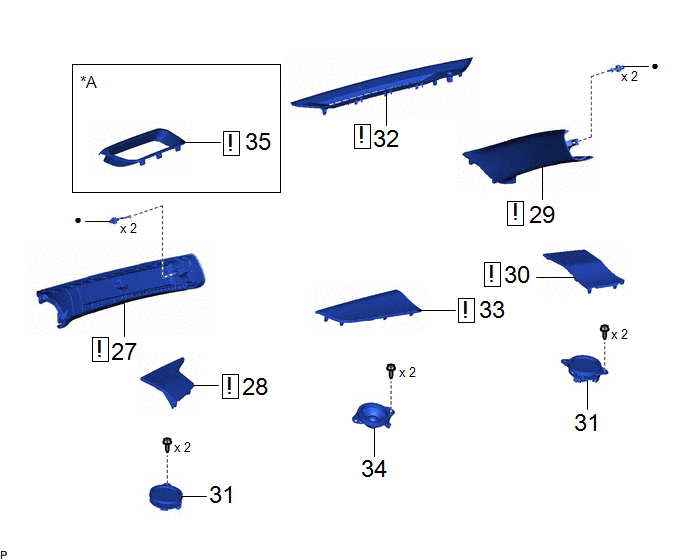

Fig 4: Instrument Panel Safety Pad Removal Components (4 Of 6)

Procedure		Part Name Code
27	FRONT PILLAR GARNISH LH	62212	See step 27	-	-
28	NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY	55408F	See step 28	-	-
29	FRONT PILLAR GARNISH RH	62211	See step 29	-	-
30	NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY	55409F	See step 30	-	-
31	FRONT NO. 3 SPEAKER ASSEMBLY	86160J	-	-	-
32	NO. 1 DEFROSTER NOZZLE GARNISH	55981	See step 32	-	-
33	NO. 1 SPEAKER OPENING COVER ASSEMBLY	55510F	See step 33	-	-
34	FRONT NO. 4 SPEAKER ASSEMBLY	86160L	-	-	-
35	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55410C	See step 35	-	-

*A	w/ Headup Display	-	-
•	Non-reusable part	-	-

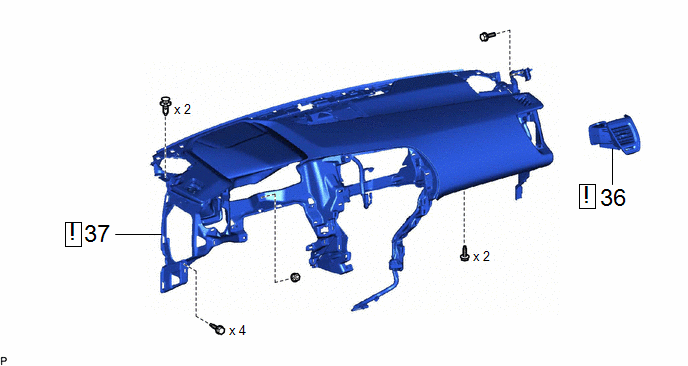

Fig 5: Instrument Panel Safety Pad Removal Components (5 Of 6)

Procedure		Part Name Code
36	NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY	55660	See step 36	-	-
37	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	See step 37	-	-

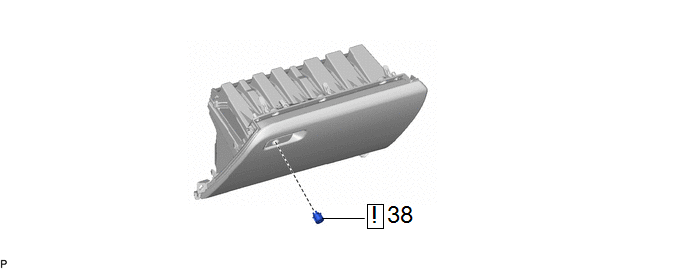

Fig 6: Instrument Panel Safety Pad Removal Components (6 Of 6)

Procedure		Part Name Code
38	GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY	69550A	See step 38	-	-
