COMPONENTS (REASSEMBLY)

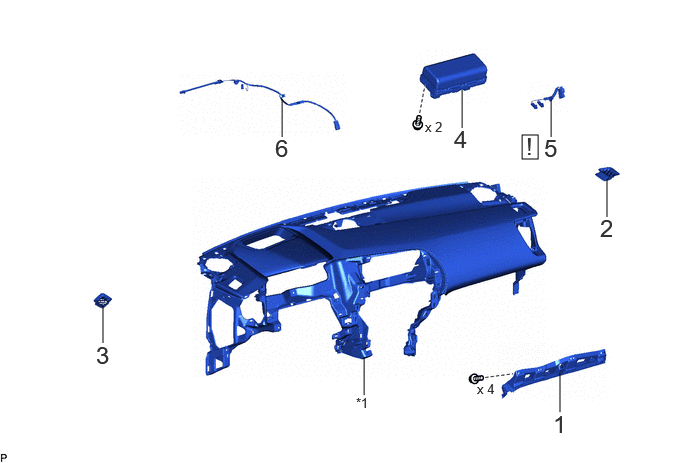

Fig 1: Instrument Panel Safety Pad Reassembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 3 INSTRUMENT PAD BRACKET	55417C	-	-	-
2	NO. 2 SIDE DEFROSTER NOZZLE	55962	-	-	-
3	NO. 1 SIDE DEFROSTER NOZZLE	55961	-	-	-
4	INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY	73960A	-	-	-
5	NO. 2 INSTRUMENT PANEL WIRE	82142	See step 5	-	-
6	NO. 3 INSTRUMENT PANEL WIRE	82143	-	-	-

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

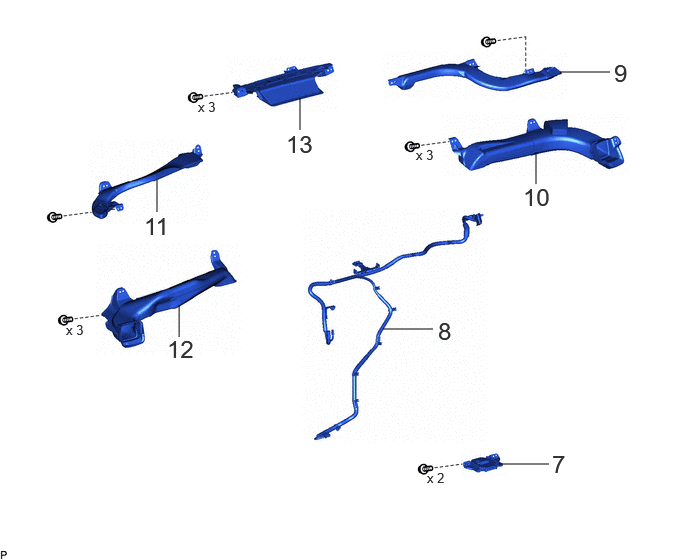

Fig 2: Instrument Panel Safety Pad Reassembly Components (2 Of 2)

Procedure		Part Name Code
7	NAVIGATION ANTENNA ASSEMBLY WITH BRACKET	-	-	-	-
8	ANTENNA CORD SUB-ASSEMBLY	86101	-	-	-
9	NO. 2 SIDE DEFROSTER NOZZLE DUCT	55972C	-	-	-
10	NO. 3 HEATER TO REGISTER DUCT	55845A	-	-	-
11	NO. 1 SIDE DEFROSTER NOZZLE DUCT	55971C	-	-	-
12	NO. 1 HEATER TO REGISTER DUCT	55843A	-	-	-
13	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
