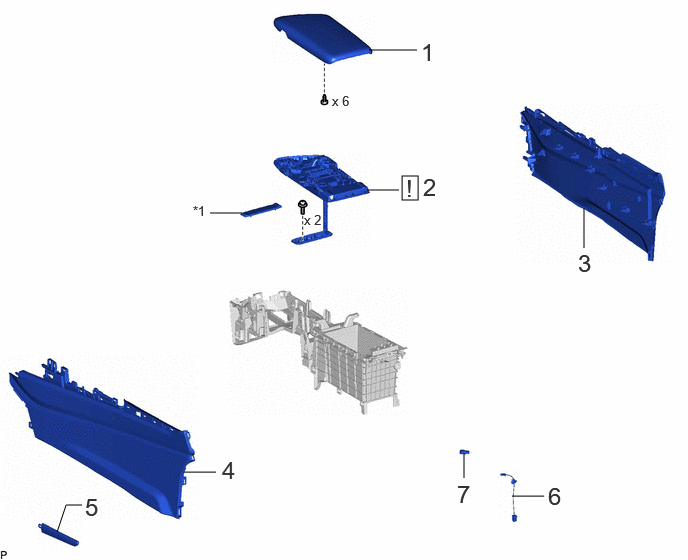

COMPONENTS (REASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CONSOLE COMPARTMENT DOOR INNER COVER SUB-ASSEMBLY | 58097A | - | - | - |
| 2 | REAR CONSOLE ARMREST ASSEMBLY | - | See step 2 | - | - |
| 3 | NO. 2 BOX SIDE PANEL | 58912C | - | - | - |
| 4 | NO. 1 BOX SIDE PANEL | 58911A | - | - | - |
| 5 | CONSOLE BOX ORNAMENT | 58835C | - | - | - |
| 6 | REAR CONSOLE BOX WIRE | 82176 | - | - | - |
| 7 | CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY | 81080K | - | - | - |
| *1 | UPPER CONSOLE RETAINER | - | - |
