Caution / Notice / Hint
COMPONENTS (INSTALLATION)
Fig 1: Rear Suspension Member (For Gasoline Model AWD) Installation Components With Torque Specifications (1 Of 2)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | HOLE PLUG | - | See step 1 | - | - |
| 2 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH | 52272A | See step 2 | - | - |
| 3 | INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH | 52272A | See step 3 | - | - |
| 4 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH | 52271E | See step 4 | - | - |
| 5 | INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH | 52271E | - | - | - |
| 6 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | 52276A | See step 6 | - | - |
| 7 | INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | 52276A | See step 7 | - | - |
| 8 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | 52275B | See step 8 | - | - |
| 9 | INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | 52275B | - | - | - |
| 10 | REAR UPPER CONTROL ARM ASSEMBLY LH | 48790 | See step 10 | - | - |
| 11 | REAR UPPER CONTROL ARM ASSEMBLY RH | 48770A | - | - | - |
| 12 | DIFFERENTIAL SUPPORT MEMBER CUSHION | 52281 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

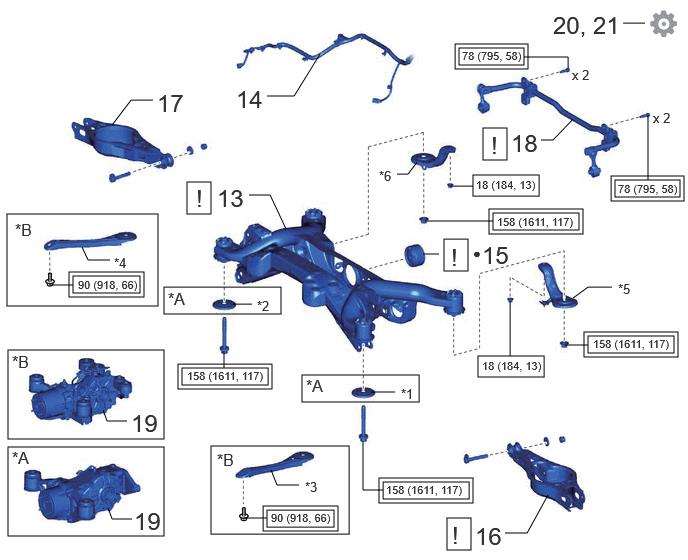

Fig 2: Rear Suspension Member (For Gasoline Model AWD) Installation Components With Torque Specifications (2 Of 2)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 13 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | 51206A | See step 13 | - | - |
| 14 | FRAME WIRE | 82164 | - | - | - |
| 15 | REAR NO. 1 DIFFERENTIAL MOUNT CUSHION | 41651 | - | - | - |
| 16 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | 48740F | See step 16 | - | - |
| 17 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH | 48730F | - | - | - |
| 18 | REAR STABILIZER BAR | 48812 | See step 18 | - | - |
| 19 | DIFFERENTIAL CARRIER ASSEMBLY | - | See step 19 | - | - |
| 20 | INSPECT AND ADJUST REAR WHEEL ALIGNMENT | - | - | - | See step 20 |
| 21 | PERFORM INITIALIZATION | - | - | - | See step 21 |
| *A | for A25A-FKS | *B | for T24A-FTS |
| *1 | REAR LOWER SUSPENSION MEMBER STOPPER LH | *2 | REAR LOWER SUSPENSION MEMBER STOPPER RH |
| *3 | REAR SUSPENSION MEMBER BRACE LH | *4 | REAR SUSPENSION MEMBER BRACE RH |
| *5 | REAR SUSPENSION ARM BRACKET SUB-ASSEMBLY LH | *6 | REAR SUSPENSION ARM BRACKET SUB-ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
