Removal [11/2021 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE SUSPENSION TOWER DAMPER

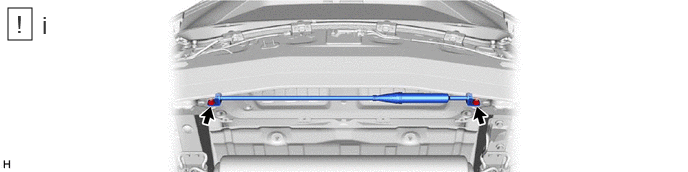

    1. GTY1064332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts and the suspension tower damper from the vehicle.
        NOTE:

        Do not extend or compress the damper.
