Installation [11/2021 - ]: Procedure

NOTE: Using height adjustment attachments and plate lift attachments, keep the engine assembly level. To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly. Using an engine sling device and engine lift, secure the engine assembly before servicing.

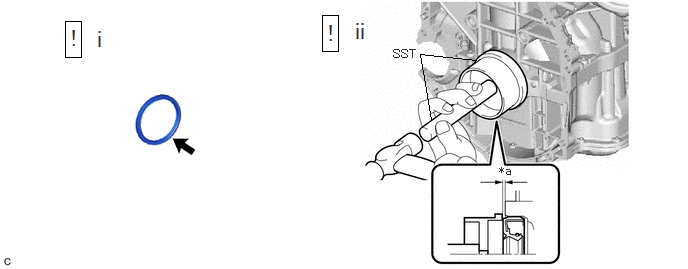

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   -0.9 to 1.1 mm

   -

   -

   1. Apply MP grease to the lip of a new rear engine oil seal.
      NOTE:

      • Keep the lip free from foreign matter.
      • Do not allow MP grease to contact the dust seal.
   2. Using SST and a hammer, tap in the rear engine oil seal.
      • SST: 09223-15030
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      -0.9 to 1.1 mm (-0.0354 to 0.0433 in.) (From the edge of the cylinder block sub-assembly and stiffening crankcase assembly)

      NOTE:

      Do not tap in the rear engine oil seal at an angle.

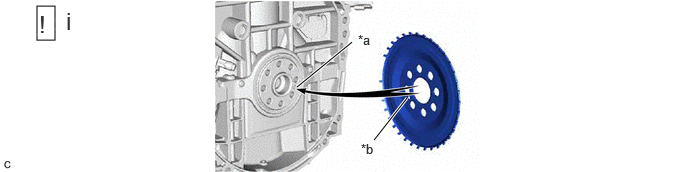

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Pin

   *b

   Pin Hole

   1. Align the pin hole of the No. 1 crankshaft position sensor plate with the pin of the crankshaft, and install the No. 1 crankshaft position sensor plate.

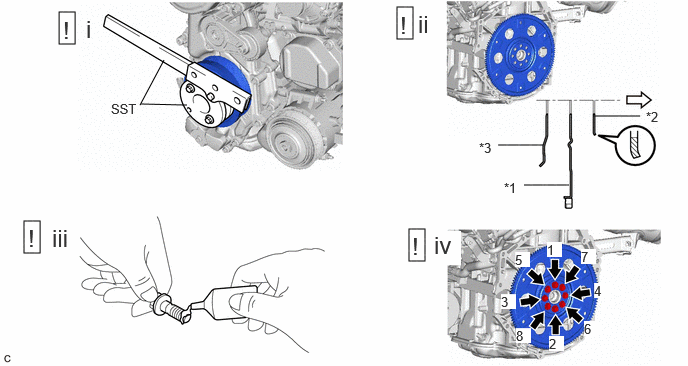

1. Fig 1: Drive Plate And Ring Gear Sub-Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Drive Plate and Ring Gear Sub-assembly	*2	Rear Drive Plate Spacer
   *3	No. 1 Crankshaft Position Sensor Plate	-	-
   	Transaxle Side	-	-

   1. Using SST, hold the crankshaft pulley assembly.
      • SST: 09213-54015
      • SST: 09330-00021
   2. Install the drive plate and ring gear sub-assembly and rear drive plate spacer to the crankshaft.
      NOTE:

      As the rear drive plate spacer, drive plate and ring gear sub-assembly and No. 1 crankshaft position sensor plate are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.

   3. Apply a few drops of adhesive to 2 or 3 threads at the tip of each of 8 new bolts.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

   4. Install and uniformly tighten the 8 bolts in the sequence shown in the illustration.

      Torque: 150 N.m (1530 kgf/cm, 111 ft.lbf)

      NOTE:

      • Do not reuse the drive plate installation bolts.
      • Handle the drive plate installation bolts carefully. Do not scratch them or subject them to any shocks.
      • Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.

for 2WD:

Refer to INSTALLATION [11/2021 - 03/2022] , or refer to INSTALLATION [03/2022 - ]

for AWD:

Refer to INSTALLATION [11/2021 - 03/2022] , or refer to INSTALLATION [03/2022 - ]
