Installation [11/2021 - ]: Procedure

INSTALL METER MIRROR SUB-ASSEMBLY

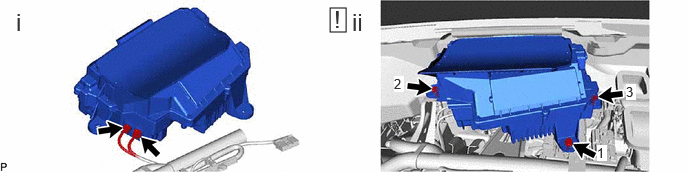

1. Fig 1: Meter Mirror Sub-Assembly Bolts Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the 2 connectors.
  2. Install the meter mirror sub-assembly with the 3 bolts.
    HINT:

    Install the bolts in the order shown in the illustration.

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to INSTALLATION [11/2021 - ]
