Removal [11/2021 - ]: Procedure

  1. REMOVE STEERING COLUMN ASSEMBLY
    1. for Manual Tilt and Manual Telescopic Steering Column:

      Refer to REMOVAL [11/2021 - 03/2023] , or refer to REMOVAL [03/2023 - 03/2024] , or refer to REMOVAL [03/2024 - ]

    2. for Power Tilt and Power Telescopic Steering Column:

      Refer to REMOVAL [11/2021 - 03/2023] , or refer to REMOVAL [03/2023 - 03/2024] , or refer to REMOVAL [03/2024 - ]

  2. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY

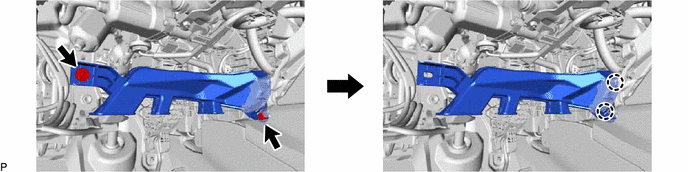

    1. GTY1073155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HEATER COVER

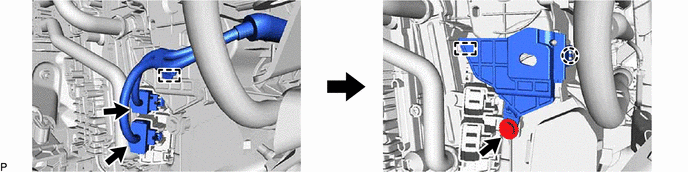

    1. GTY1070982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE QUICK HEATER ASSEMBLY

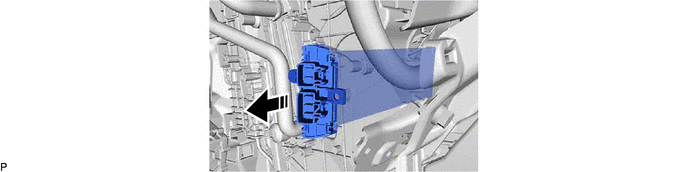

    1. GTY1070487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
