Check Bus 2 Line [03/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

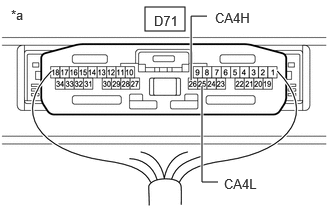

      GTY1059853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D71-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  41

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1059853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D71-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

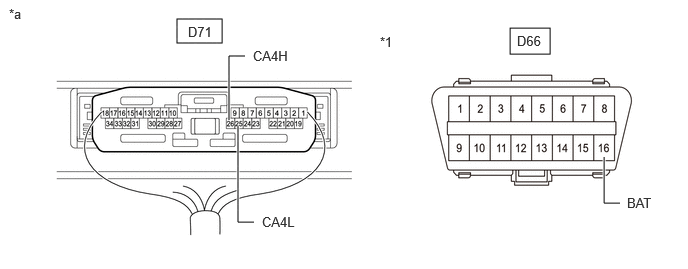

      GTY1060294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D71-25 (CA4L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

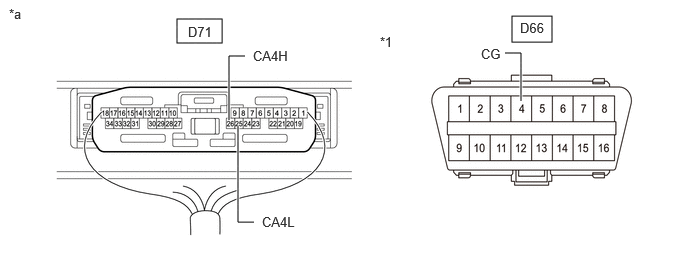

      GTY1059769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D71-25 (CA4L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D92 No. 8 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-16 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  13

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-17 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-15 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  15

    Result:

    OK

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-19 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  16

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A18 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-16 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the D67 hybrid vehicle control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-17 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Disconnect the A47 inverter with converter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-15 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Disconnect the z14 battery ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-19 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

  17. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D92 No. 8 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  23

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-16 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  24

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  25

    Result:

    OK

    See step  20

  20. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-17 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  26

    Result:

    OK

    See step  21

  21. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-15 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  22

  22. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-19 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  28

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A18 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-16 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the D67 hybrid vehicle control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-17 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Disconnect the A47 inverter with converter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-15 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Disconnect the z14 battery ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-19 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

  29. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D92 No. 8 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D92-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  35

    Result:

    OK

    See step  30

  30. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  36

    Result:

    OK

    See step  31

  31. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D92-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  37

    Result:

    OK

    See step  32

  32. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D92-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  38

    Result:

    OK

    See step  33

  33. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D92-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  34

  34. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D92-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  40

  35. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D92-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A18 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D92-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the D67 hybrid vehicle control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D92-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Disconnect the A47 inverter with converter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D92-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Disconnect the z14 battery ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D92-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

  41. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D71-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  42

  42. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the D71 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D92 No. 8 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D92-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  43

  43. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  44

  44. CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
    1. Reconnect the D92 No. 8 global CAN junction connector.
    2. Disconnect the A18 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A18-8 (CANH) - A18-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - NO. 8 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
