Check Bus 2 Line [03/2022 - 03/2024]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver (for TMC Made) A
      except Telematics Transceiver (for TMC Made) B

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1060081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-26 (CA4H) - D155-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  46

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1060081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-26 (CA4H) - D155-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  34

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1064293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-26 (CA4H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D155-25 (CA4L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

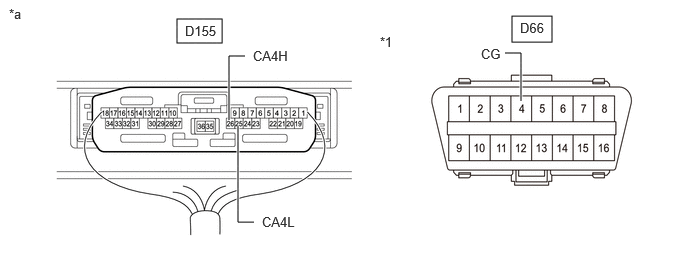

      GTY1064366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-26 (CA4H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D155-25 (CA4L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  6. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1059853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D71-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  46

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1059853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D71-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  34

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1060294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D71-25 (CA4L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1059769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D71-25 (CA4L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D92 No. 8 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-16 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  12

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  18

    Result:

    OK

    See step  13

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-17 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  19

    Result:

    OK

    See step  14

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-15 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  20

    Result:

    OK

    See step  15

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-19 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  21

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A18 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-16 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  19. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the D67 hybrid vehicle control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-17 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

  20. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Disconnect the A47 inverter with converter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-15 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

  21. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Disconnect the z14 battery ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D92-19 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

  22. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D92 No. 8 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  28

    Result:

    OK

    See step  23

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-16 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  24

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  30

    Result:

    OK

    See step  25

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-17 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  31

    Result:

    OK

    See step  26

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-15 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  32

    Result:

    OK

    See step  27

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-19 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  33

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  29. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A18 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-16 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  30. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  31. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the D67 hybrid vehicle control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-17 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

  32. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Disconnect the A47 inverter with converter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-15 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

  33. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Disconnect the z14 battery ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D92-19 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

  34. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D92 No. 8 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D92-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  40

    Result:

    OK

    See step  35

  35. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  41

    Result:

    OK

    See step  36

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D92-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  42

    Result:

    OK

    See step  37

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D92-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  43

    Result:

    OK

    See step  38

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D92-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  44

    Result:

    OK

    See step  39

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D92-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  45

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D92-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  41. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A18 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  42. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-1 (CANH) - D92-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  43. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the D67 hybrid vehicle control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-6 (CANH) - D92-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

  44. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
    1. Disconnect the A47 inverter with converter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-4 (CANH) - D92-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

  45. CHECK FOR SHORT IN CAN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
    1. Disconnect the z14 battery ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-8 (CANH) - D92-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

  46. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      EXCEPT TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D71-26 (CA4H) - D71-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      W/ TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D155-26 (CA4H) - D155-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  47

  47. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D92 No. 8 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-2 (CANH) - D92-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  48

  48. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 8 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D92-5 (CANH) - D92-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 8 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  49

  49. CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
    1. Reconnect the D92 No. 8 global CAN junction connector.
    2. Disconnect the A18 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A18-8 (CANH) - A18-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - NO. 8 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
