Check Bus 1 Line [11/2021 - 03/2022]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

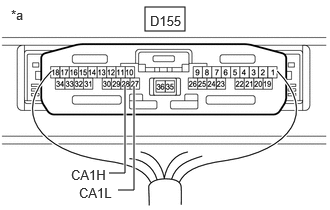

      GTY1060082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-28 (CA1H) - D155-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  106

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1060082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-28 (CA1H) - D155-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  74

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

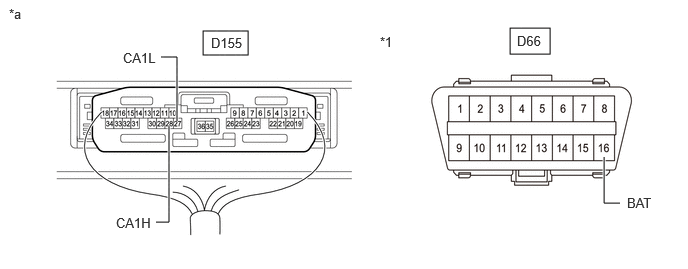

      GTY1064288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-28 (CA1H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D155-27 (CA1L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  42

    Result:

    OK

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

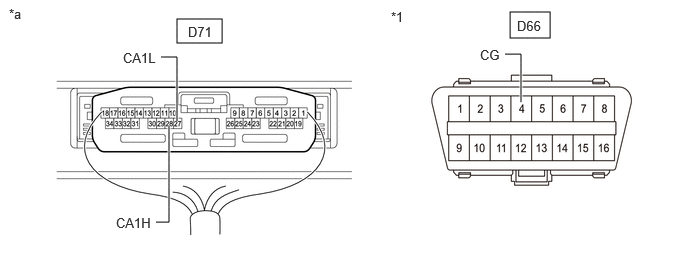

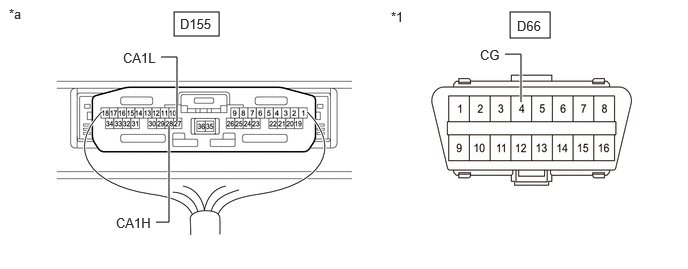

      GTY1064291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-28 (CA1H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D155-27 (CA1L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  6. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

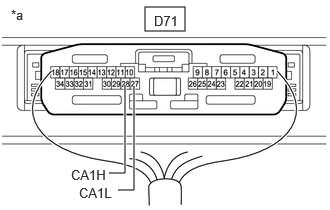

      GTY1059856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-28 (CA1H) - D71-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  106

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1059856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-28 (CA1H) - D71-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  74

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

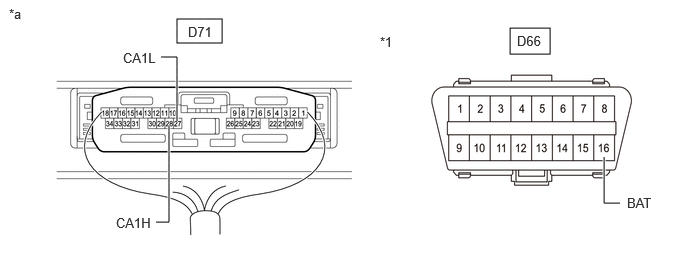

      GTY1060265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-28 (CA1H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D71-27 (CA1L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  42

    Result:

    OK

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1059770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-28 (CA1H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D71-27 (CA1L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D91 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D91-8 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D91-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  12

  12. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  13

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D91-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  15

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D91-8 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Disconnect the D56 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D91-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the M17 forward recognition camera connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-2 (CA2P) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      M17-1 (CA2L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  17

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-10 (CA1P) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      M17-9 (CA1N) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  18

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Disconnect the A94 millimeter wave radar sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-4 (CA2H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A94-3 (CA2L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-10 (CA3H) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A94-9 (CA3L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  20

  20. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Disconnect the A79 No. 2 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-7 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A79-14 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  21

  21. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A79-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  25

    Result:

    OK

    See step  22

  22. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Front Side Radar Sensor System A
      w/o Front Side Radar Sensor System B

    Result:

    B

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  23

  23. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A79-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  24

  24. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))
    1. Disconnect the A58 front side radar sensor (LH) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A79-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FRONT SIDE RADAR SENSOR (LH). Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))

  25. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the G147 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      G147-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  26

  26. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-7 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      G147-14 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  30

    Result:

    OK

    See step  27

  27. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Support Brake System A
      w/o Parking Support Brake System B

    Result:

    B

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  28

  28. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      G147-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  29

  29. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the G114 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      G147-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)

  30. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the O4 No. 14 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O4-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  31

  31. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O4-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  34

    Result:

    OK

    See step  32

  32. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-7 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O4-14 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  33

  33. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Disconnect the O2 blind spot monitor sensor LH (B) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-7 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O4-14 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))

  34. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the P23 No. 15 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      P23-8 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  35

  35. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  37

    Result:

    A

    See step  36

  36. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      P23-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  38

    Result:

    OK

    See step  37

  37. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      P23-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  40

  38. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/o Parking Support Brake System A
      w/ Parking Support Brake System B

    Result:

    B

    See step  41

    Result:

    A

    See step  39

  39. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the P28 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      P23-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  40. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Disconnect the P24 No. 3 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      P23-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 3 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)

  41. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the P29 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      P23-10 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  42. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D91 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D91-8 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  46

    Result:

    OK

    See step  43

  43. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D91-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  48

    Result:

    OK

    See step  44

  44. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  45

  45. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D91-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  47

  46. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D91-8 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  47. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Disconnect the D56 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D91-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)

  48. CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the M17 forward recognition camera connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-2 (CA2P) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      M17-1 (CA2L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  49

  49. CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-10 (CA1P) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      M17-9 (CA1N) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  50

  50. CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Disconnect the A94 millimeter wave radar sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-4 (CA2H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A94-3 (CA2L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  51

  51. CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-10 (CA3H) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A94-9 (CA3L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  52

  52. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Disconnect the A79 No. 2 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-7 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A79-14 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  53

  53. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A79-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  57

    Result:

    OK

    See step  54

  54. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Front Side Radar Sensor System A
      w/o Front Side Radar Sensor System B

    Result:

    B

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  55

  55. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A79-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  56

  56. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))
    1. Disconnect the A58 front side radar sensor (LH) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A79-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FRONT SIDE RADAR SENSOR (LH). Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))

  57. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the G147 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      G147-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  58

  58. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-7 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      G147-14 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  62

    Result:

    OK

    See step  59

  59. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Support Brake System A
      w/o Parking Support Brake System B

    Result:

    B

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  60

  60. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      G147-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  61

  61. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the G114 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      G147-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)

  62. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the O4 No. 14 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O4-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  63

  63. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O4-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  66

    Result:

    OK

    See step  64

  64. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-7 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O4-14 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  65

  65. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Disconnect the O2 blind spot monitor sensor LH (B) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-7 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O4-14 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))

  66. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the P23 No. 15 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      P23-8 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  67

  67. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  69

    Result:

    A

    See step  68

  68. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      P23-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  70

    Result:

    OK

    See step  69

  69. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      P23-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  72

  70. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/o Parking Support Brake System A
      w/ Parking Support Brake System B

    Result:

    B

    See step  73

    Result:

    A

    See step  71

  71. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the P28 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      P23-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  72. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Disconnect the P24 No. 3 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      P23-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 3 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)

  73. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the P29 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      P23-10 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  74. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D91 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D91-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  78

    Result:

    OK

    See step  75

  75. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-3 (CANH) - D91-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  80

    Result:

    OK

    See step  76

  76. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  77

  77. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-5 (CANH) - D91-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  79

  78. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D91-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  79. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Disconnect the D56 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-5 (CANH) - D91-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)

  80. CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the D91 No. 7 global CAN junction connector.
    2. Disconnect the M17 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-2 (CA2P) - M17-1 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  81

  81. CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-10 (CA1P) - M17-9 (CA1N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  82

  82. CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Reconnect the M17 forward recognition camera connector.
    2. Disconnect the A94 millimeter wave radar sensor assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-4 (CA2H) - A94-3 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  83

  83. CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-10 (CA3H) - A94-9 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  84

  84. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Reconnect the A94 millimeter wave radar sensor assembly connector.
    2. Disconnect the A79 No. 2 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-7 (CANH) - A79-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  85

  85. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-3 (CANH) - A79-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  89

    Result:

    OK

    See step  86

  86. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Front Side Radar Sensor System A
      w/o Front Side Radar Sensor System B

    Result:

    B

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  87

  87. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-5 (CANH) - A79-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  88

  88. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))
    1. Disconnect the A58 front side radar sensor (LH) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-5 (CANH) - A79-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FRONT SIDE RADAR SENSOR (LH). Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (LH))

  89. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A79 No. 2 global CAN junction connector.
    2. Disconnect the G147 No. 12 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-3 (CANH) - G147-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  90

  90. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-7 (CANH) - G147-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  94

    Result:

    OK

    See step  91

  91. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Support Brake System A
      w/o Parking Support Brake System B

    Result:

    B

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  92

  92. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-5 (CANH) - G147-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  93

  93. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the G114 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-5 (CANH) - G147-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)

  94. CHECK FOR SHORT IN CAN BUS LINES (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the G147 No. 12 global CAN junction connector.
    2. Disconnect the O4 No. 14 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-5 (CANH) - O4-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  95

  95. CHECK FOR SHORT IN CAN BUS LINES (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-3 (CANH) - O4-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  98

    Result:

    OK

    See step  96

  96. CHECK FOR SHORT IN CAN BUS LINES (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-7 (CANH) - O4-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  97

  97. CHECK FOR SHORT IN CAN BUS LINES (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Disconnect the O2 blind spot monitor sensor LH (B) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-7 (CANH) - O4-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))

  98. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the O4 No. 14 global CAN junction connector.
    2. Disconnect the P23 No. 15 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-1 (CANH) - P23-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  99

  99. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  101

    Result:

    A

    See step  100

  100. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - P23-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  102

    Result:

    OK

    See step  101

  101. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - P23-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  104

  102. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/o Parking Support Brake System A
      w/ Parking Support Brake System B

    Result:

    B

    See step  105

    Result:

    A

    See step  103

  103. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the P28 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - P23-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  104. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Disconnect the P24 No. 3 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - P23-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 3 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)

  105. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the P29 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-3 (CANH) - P23-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  106. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      W/O TELEMATICS TRANSCEIVER

      Tester Connection Condition Specified Condition
      D71-28 (CA1H) - D71-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      W/ TELEMATICS TRANSCEIVER

      Tester Connection Condition Specified Condition
      D155-28 (CA1H) - D155-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  107

  107. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D91 No. 7 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-1 (CANH) - D91-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  108

  108. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D91-3 (CANH) - D91-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  109

  109. CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the D91 No. 7 global CAN junction connector.
    2. Disconnect the M17 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-2 (CA2P) - M17-1 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  110

  110. CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M17-10 (CA1P) - M17-9 (CA1N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  111

  111. CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Reconnect the M17 forward recognition camera connector.
    2. Disconnect the A94 millimeter wave radar sensor assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-4 (CA2H) - A94-3 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  112

  112. CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A94-10 (CA3H) - A94-9 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  113

  113. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Reconnect the A94 millimeter wave radar sensor assembly connector.
    2. Disconnect the A79 No. 2 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-7 (CANH) - A79-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  114

  114. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A79-3 (CANH) - A79-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  115

  115. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A79 No. 2 global CAN junction connector.
    2. Disconnect the G147 No. 12 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-3 (CANH) - G147-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  116

  116. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G147-7 (CANH) - G147-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  117

  117. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the G147 No. 12 global CAN junction connector.
    2. Disconnect the O4 No. 14 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-5 (CANH) - O4-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  118

  118. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-3 (CANH) - O4-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  119

  119. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the O4 No. 14 global CAN junction connector.
    2. Disconnect the P23 No. 15 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-1 (CANH) - P23-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  120

  120. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P23-5 (CANH) - P23-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  121

  121. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 3 CAN JUNCTION TERMINAL)
    1. Reconnect the P23 No. 15 global CAN junction connector.
    2. Disconnect the P24 No. 3 CAN junction terminal connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P24-3 (CANH) - P24-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 3 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION TERMINAL - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
