Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HARNESS
    1. GTY1079238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE WIRE HARNESS
    1. GTY1079239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STARTER INRUSH CURRENT REDUCTION RELAY
    1. GTY1079198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

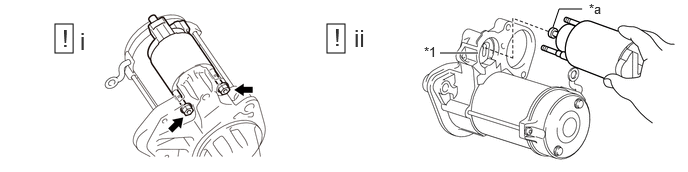

  4. REMOVE MAGNET STARTER SWITCH ASSEMBLY
    1. GTY1079242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Pinion Drive Lever - -
      *a Hook - -
      1. While holding the magnet starter switch assembly to the starter drive housing assembly, remove the 2 nuts.
      2. While lifting the rear of the magnet starter switch assembly, remove the hook from the pinion drive lever, then remove the magnet starter switch assembly.
  5. REMOVE STARTER YOKE ASSEMBLY
    1. GTY1079506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T25 "TORX" socket wrench, remove the 2 through bolts, and pull out the starter yoke assembly together with the starter commutator end frame assembly.
  6. REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY
    1. GTY1079285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly *2 Starter Commutator End Frame Assembly
      *a Lead Wire - -
      1. Remove the 2 screws.
      2. While holding down the lead wire, remove the starter commutator end frame assembly from the starter yoke assembly.
  7. REMOVE STARTER BRUSH HOLDER ASSEMBLY
    1. GTY1047381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, hold the brush spring back and disconnect the 4 brushes.
      2. Remove the starter brush holder assembly from the starter armature assembly.
  8. REMOVE STARTER ARMATURE ASSEMBLY
    1. GTY1075092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE STARTER ARMATURE PLATE
    1. GTY1075484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Drive Housing Assembly *2 Starter Yoke Assembly
      *3 Starter Armature Plate - -
      1. Remove the starter armature plate from the starter drive housing assembly or starter yoke assembly.
  10. REMOVE PLANETARY GEAR
    1. GTY1075977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
    1. GTY1075314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Center Bearing Clutch Sub-assembly *2 Starter Drive Housing Assembly
      *3 Pinion Drive Lever *4 Rubber Seal
