Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (INSTALLATION)

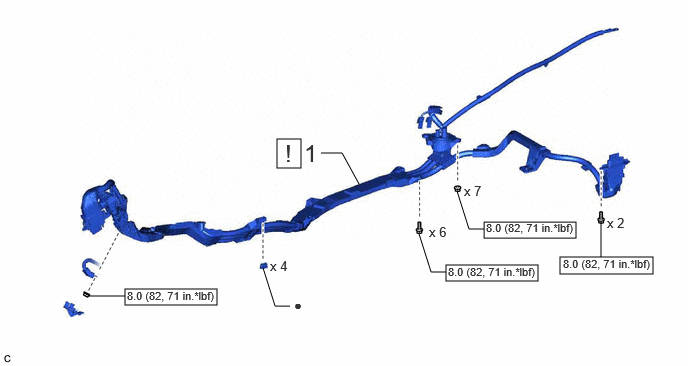

Fig 1: Frame Wire Installation Components With Torque Specifications (1 Of 6)
GTY1077858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 FLOOR UNDER WIRE 821H1 See step  1 - -
• Non-reusable part - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

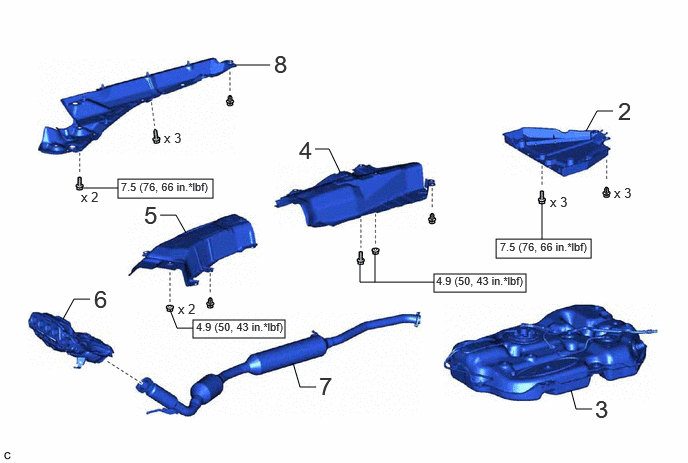

Fig 2: Frame Wire Installation Components With Torque Specifications (2 Of 6)
GTY1077784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
2 NO. 1 FLOOR UNDER COVER 58398F - - -
3 FUEL TANK SUB-ASSEMBLY 77100U - - -
4 FRONT LOWER NO. 1 FLOOR HEAT INSULATOR 58152A - - -
5 FRONT NO. 2 FLOOR HEAT INSULATOR 58153E - - -
6 EXHAUST MANIFOLD 17141 - - -
7 FRONT EXHAUST PIPE ASSEMBLY 17410 - - -
8 FRONT FLOOR COVER RH 58165C - - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

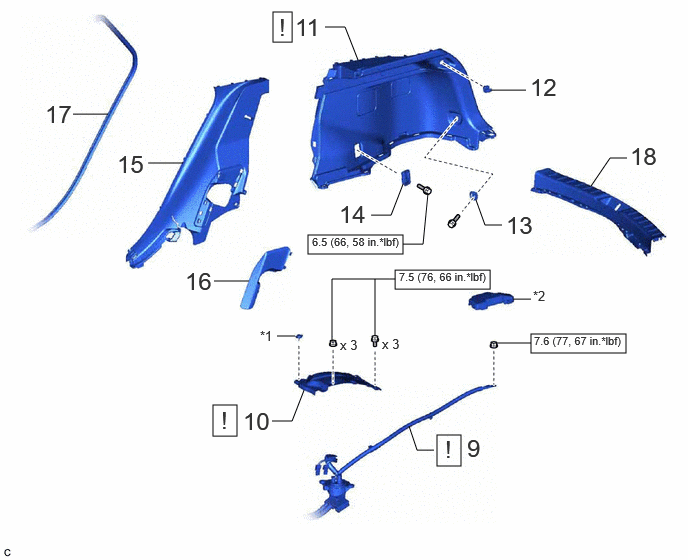

Fig 3: Frame Wire Installation Components With Torque Specifications (3 Of 6)
GTY1078361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
9 FLOOR UNDER WIRE 821H1 See step  9 - -
10 NO. 1 HV BATTERY COVER PANEL RH G92N4A See step  10 - -
11 DECK TRIM SIDE PANEL ASSEMBLY RH 64730B See step  11 - -
12 NO. 1 LUGGAGE COMPARTMENT TRIM HOOK 64725F - - -
13 LUGGAGE HOLD BELT STRIKER ASSEMBLY 58460D - - -
14 ROPE HOOK ASSEMBLY 66310H - - -
15 REAR SEAT SIDE GARNISH RH 62551F - - -
16 NO. 1 SIDE TRIM BASE COVER RH 62515B - - -
17 REAR DOOR OPENING TRIM WEATHERSTRIP RH 62331A - - -
18 REAR FLOOR FINISH PLATE 58387B - - -
*1 BATTERY COVER LOCK STRIKER *2 NO. 3 RELAY BLOCK COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -

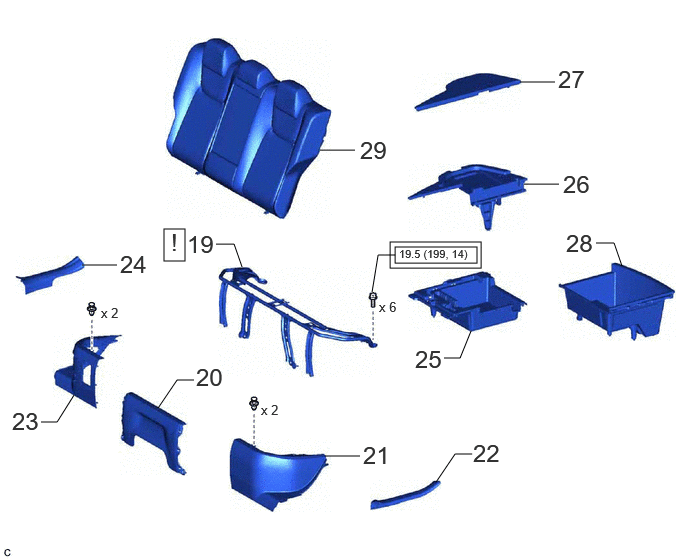

Fig 4: Frame Wire Installation Components With Torque Specifications (4 Of 6)
GTY1078880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
19 REAR SEAT CUSHION LEG SUB-ASSEMBLY 71033 See step  19 - -
20 BATTERY SERVICE COVER BOARD 58464D - - -
21 NO. 3 BATTERY SERVICE COVER BOARD 58466K - - -
22 REAR DOOR SCUFF PLATE LH 67917A - - -
23 NO. 2 BATTERY SERVICE COVER BOARD 58467J - - -
24 REAR DOOR SCUFF PLATE RH 67918A - - -
25 DECK FLOOR BOX RH 64995 - - -
26 JUNCTION BLOCK SERVICE COVER 58461H - - -
27 REAR FLOOR BOARD REAR RH 58417B - - -
28 REAR DECK FLOOR BOX 64993 - - -
29 REAR SEAT ASSEMBLY - - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

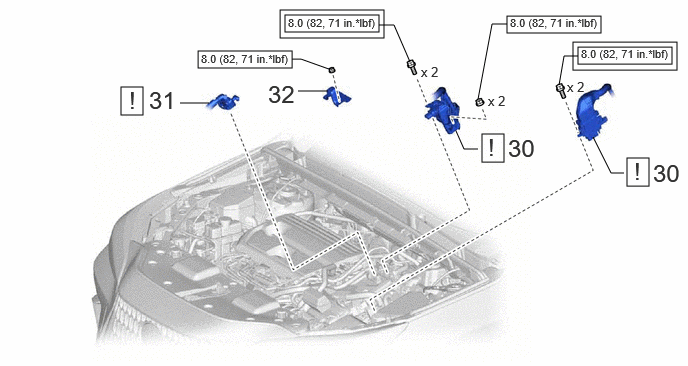

Fig 5: Frame Wire Installation Components With Torque Specifications (5 Of 6)
GTY1080424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
30 FLOOR UNDER WIRE 821H1 See step  30 - -
31 ENGINE ROOM MAIN WIRE 82111 See step  31 - -
32 NO. 2 INVERTER PROTECTOR G921F - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

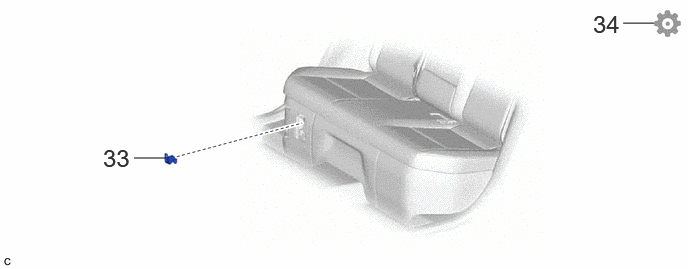

Fig 6: Frame Wire Installation Components (6 Of 6)
GTY1080311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
33 SERVICE PLUG GRIP G3834 - - -
34 PERFORM INITIALIZATION - - - See step  34
