COMPONENTS (INSTALLATION)

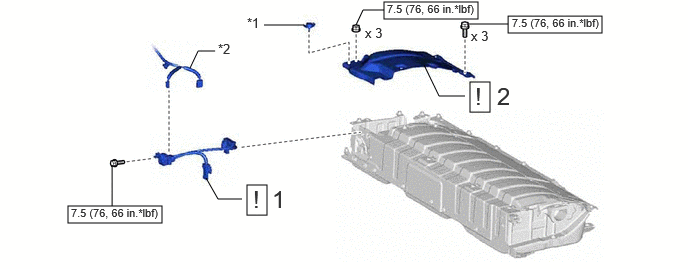

Fig 1: Battery Plug Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY	G3830A	See step 1	-	-
2	NO. 1 HV BATTERY COVER PANEL RH	G92N4A	See step 2	-	-

*1	BATTERY COVER LOCK STRIKER	*2	FLOOR WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

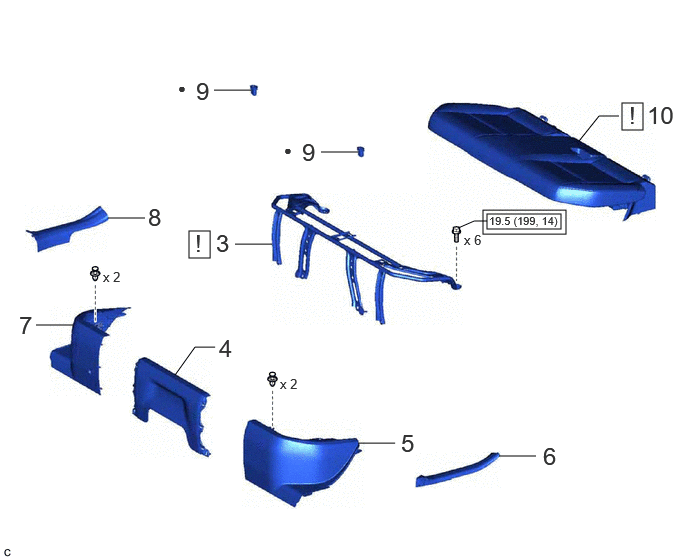

Fig 2: Battery Plug Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
3	REAR SEAT CUSHION LEG SUB-ASSEMBLY	71033	See step 3	-	-
4	BATTERY SERVICE COVER BOARD	58464D	-	-	-
5	NO. 3 BATTERY SERVICE COVER BOARD	58466K	-	-	-
6	REAR DOOR SCUFF PLATE LH	67917A	-	-	-
7	NO. 2 BATTERY SERVICE COVER BOARD	58467J	-	-	-
8	REAR DOOR SCUFF PLATE RH	67918A	-	-	-
9	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
10	REAR SEAT CUSHION ASSEMBLY	-	See step 10	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

•

Non-reusable part

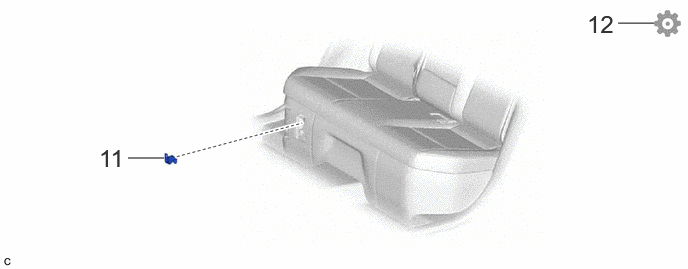

Fig 3: Battery Plug Installation Components (3 Of 3)

Callout - Procedure		Part Name Code
11	SERVICE PLUG GRIP	G3834	-	-	-
12	PERFORM INITIALIZATION	-	-	-	See step 12
