Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BATTERY COOLING BLOWER BRACKET

    Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL BATTERY COOLING BLOWER ASSEMBLY
    1. GTY1080267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the battery cooling blower assembly to the HV battery with the 2 bolts.

        Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

        NOTE:
        • Be sure not to touch the fan part of the battery cooling blower assembly.
        • Do not lift the battery cooling blower assembly using the wire harness.
      2. Connect the battery cooling blower assembly connector.
  3. INSTALL NO. 1 HYBRID BATTERY INTAKE DUCT
  4. INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

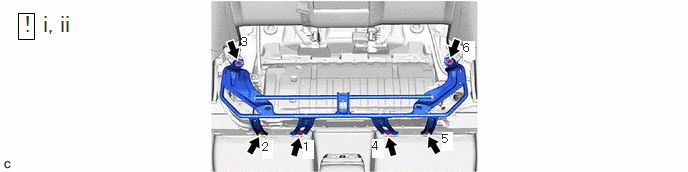

    1. Fig 1: Rear Seat Cushion Leg Sub-Assembly Bolts Tightening Sequence
      GTY1078715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear seat cushion leg sub-assembly with the 6 bolts.
      2. Fully tighten the 6 bolts in the order shown in the illustration.

        Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

  5. INSTALL BATTERY SERVICE COVER BOARD
  6. INSTALL NO. 3 BATTERY SERVICE COVER BOARD
  7. INSTALL REAR DOOR SCUFF PLATE LH
  8. INSTALL NO. 2 BATTERY SERVICE COVER BOARD
  9. INSTALL REAR DOOR SCUFF PLATE RH
  10. INSTALL REAR SEAT CUSHION LOCK HOOK
  11. INSTALL REAR SEAT CUSHION ASSEMBLY
    Refer to PROCEDURE - Step 2
