Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

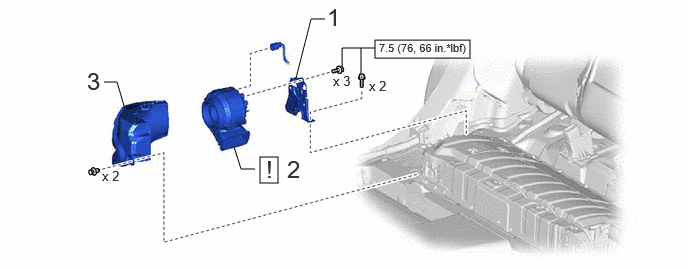

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | BATTERY COOLING BLOWER BRACKET | G923B | - | - | - |
| 2 | BATTERY COOLING BLOWER ASSEMBLY | G9230 | See step 2 | - | - |
| 3 | NO. 1 HYBRID BATTERY INTAKE DUCT | G92D1 | - | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | REAR SEAT CUSHION LEG SUB-ASSEMBLY | 71033 | - | - | - |
| 5 | BATTERY SERVICE COVER BOARD | 58464D | - | - | - |
| 6 | NO. 3 BATTERY SERVICE COVER BOARD | 58466K | - | - | - |
| 7 | REAR DOOR SCUFF PLATE LH | 67917A | - | - | - |
| 8 | NO. 2 BATTERY SERVICE COVER BOARD | 58467J | - | - | - |
| 9 | REAR DOOR SCUFF PLATE RH | 67918A | - | - | - |
| 10 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 11 | REAR SEAT CUSHION ASSEMBLY | - | See step 11 | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
