Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to REMOVAL [11/2021 - ]

  3. REMOVE PURGE VALVE (PURGE VSV)

    Refer to REMOVAL [11/2021 - ]

  4. DISCONNECT FUEL VAPOR FEED HOSE ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. DISCONNECT ENGINE WIRE

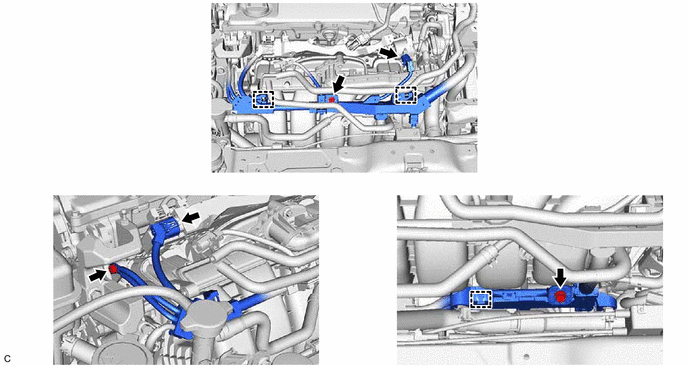

    1. GTY1078938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 5
  8. REMOVE EGR VALVE ADAPTER GASKET

    Refer to PROCEDURE - Step 6

  9. REMOVE EGR INLET GASKET

    Refer to PROCEDURE - Step 7

  10. DISCONNECT NO. 5 WATER BY-PASS HOSE

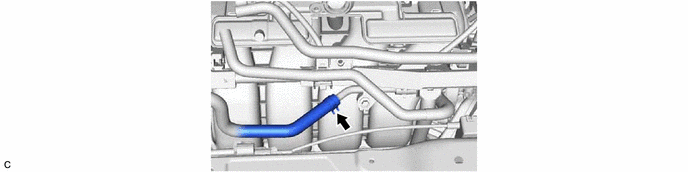

    1. GTY1078931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT NO. 3 WATER BY-PASS PIPE

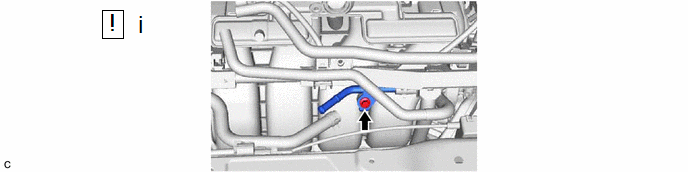

    1. GTY1078964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and disconnect the No. 3 water by-pass pipe from the intake manifold.
  12. REMOVE NO. 2 WATER BY-PASS PIPE
    1. GTY1078750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the wire harness clamp.
      2. Using an 8 mm socket wrench, remove the 2 bolts (A) and separate the No. 2 water by-pass pipe from the intake manifold.
      3. Remove the bolt (B) and No. 2 water by-pass pipe from the cylinder block sub-assembly.
  13. REMOVE NO. 2 FUEL VAPOR FEED HOSE ASSEMBLY
    1. GTY1078878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE INTAKE MANIFOLD
    1. w/ Stud Bolt:

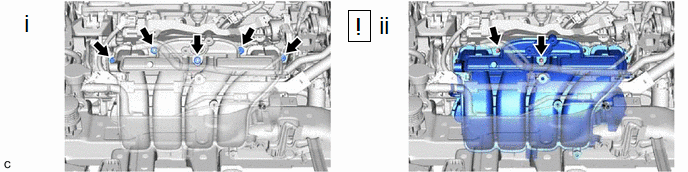

      GTY1077662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and 2 nuts.
      2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and intake manifold from the cylinder head sub-assembly.
    2. w/o Stud Bolt:

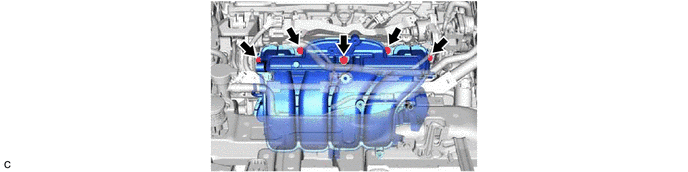

      GTY1077824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. GTY999357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 ENGINE COVER

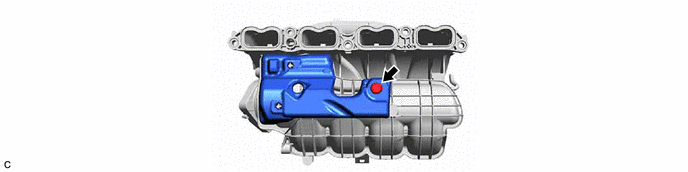

    1. GTY999356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE VACUUM HOSE
    1. GTY1080163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
