Parts Location [11/2021 - ]: Illustration

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

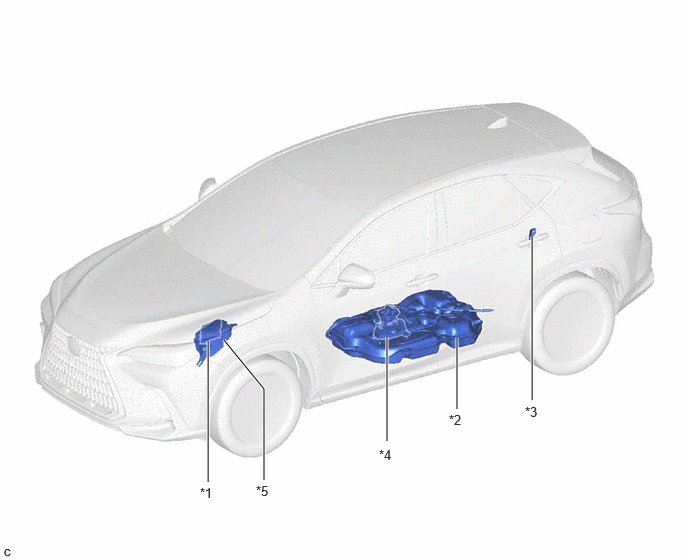

*1	ECM	*2	FUEL TANK SUB-ASSEMBLY
*3	FUEL PUMP CONTROL ECU	*4	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 2 RELAY	-	-

*1	PORT FUEL INJECTOR ASSEMBLY	*2	NO. 2 FUEL PRESSURE SENSOR (for Low Pressure)
*3	FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)	*4	FUEL PRESSURE SENSOR (for High Pressure)
*5	DIRECT FUEL INJECTOR ASSEMBLY	-	-
