Parts Location [11/2021 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

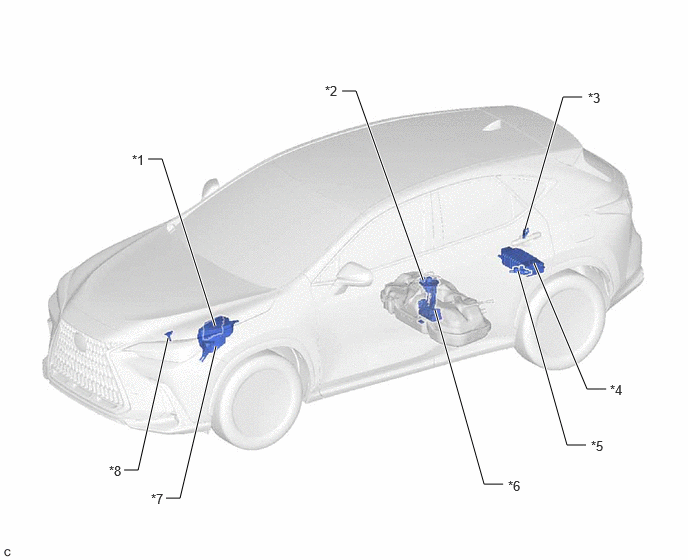

| *1 |
ECM |
*2 |
FUEL TANK PRESSURE SENSOR |
| *3 |
FUEL PUMP CONTROL ECU |
*4 |
CANISTER |
| *5 |
FUEL VAPOR-CONTAINMENT VALVE |
*6 |
FUEL PUMP (for Low Pressure Side) |
| *7 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
*8 |
MASS AIR FLOW METER SUB-ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
PURGE VSV |
*2 |
PORT FUEL INJECTOR ASSEMBLY |
| *3 |
NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
*4 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *5 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*6 |
CRANKSHAFT POSITION SENSOR |
| *7 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*8 |
DIRECT FUEL INJECTOR ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
*6 |
KNOCK CONTROL SENSOR |
| *7 |
ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY) |
*2 |
FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure Side) |
| *3 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*4 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *5 |
IGNITION COIL ASSEMBLY |
*6 |
OIL PRESSURE AND TEMPERATURE SENSOR |
| *7 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
*8 |
AIR FUEL RATIO SENSOR (Sensor 1) |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
HYBRID VEHICLE CONTROL ECU |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
DLC3 |
- |
- |
