Reassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PUMP
    1. GTY1076417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring *2 Fuel Pump Spacer
      1. Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump.
      2. Install the fuel pump to the fuel suction plate sub-assembly.
        NOTE:

        Make sure that the O-ring is not cut or pinched during installation.

  2. INSTALL NO. 2 FUEL SUCTION SUPPORT
  3. INSTALL FUEL SUB-TANK SUB-ASSEMBLY
    1. GTY1076937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Installation Hole
      Slide - -
      1. Engage the 4 claws to install the fuel suction plate sub-assembly to the fuel sub-tank sub-assembly.
      2. Align the protrusion of the fuel sub-tank sub-assembly with the installation hole of the fuel suction plate sub-assembly and then slide the fuel suction plate sub-assembly to install the fuel sub-tank sub-assembly.
  4. INSTALL FUEL PUMP HARNESS

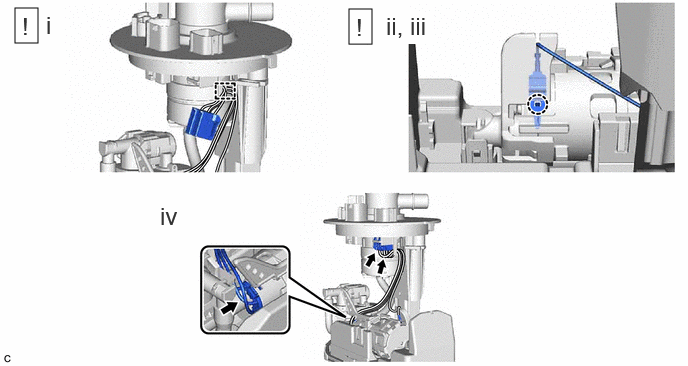

    1. GTY1077270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the clamp to install the fuel pump harness to the fuel suction tube with pump and gauge assembly.
        NOTE:
        • Do not damage the wire harness.
        • When engaging each wire harness to the clamp, engage one wire at a time.
      2. Engage the claw and connect the ground terminal of the fuel pump harness.
      3. Check the connection state of the fuel pump harness.

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Fuel pump body - Ground terminal of the fuel pump harness Always Below 50 Ω

        If the result is not as specified, reconnect the fuel pump harness to the fuel pump so that the ground terminal of the fuel pump harness is securely connected to the fuel pump body.

      4. Connect the 3 fuel pump harness connectors.
  5. INSTALL FUEL SENDER GAUGE ASSEMBLY
    See step  1
