Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SENDER GAUGE ASSEMBLY
    See step  2
  2. REMOVE FUEL PUMP HARNESS

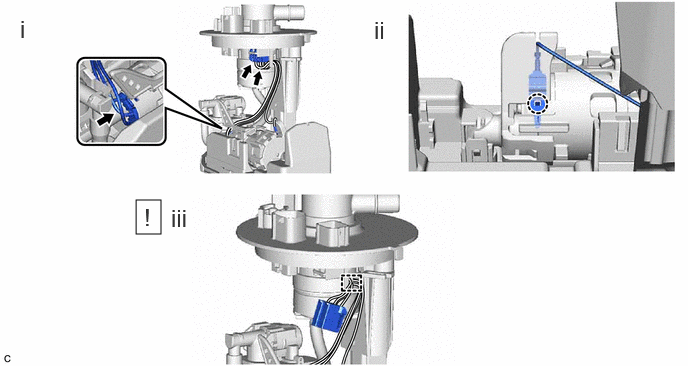

    1. GTY1076062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 3 fuel pump harness connectors.
      2. Disengage the claw and disconnect the ground terminal of the fuel pump harness.
      3. Disengage the clamp to remove the fuel pump harness from the fuel suction tube with pump and gauge assembly.
        NOTE:
        • Do not damage the wire harness.
        • When disengaging each wire harness from the clamp, disengage one wire at a time.
  3. REMOVE FUEL SUB-TANK SUB-ASSEMBLY

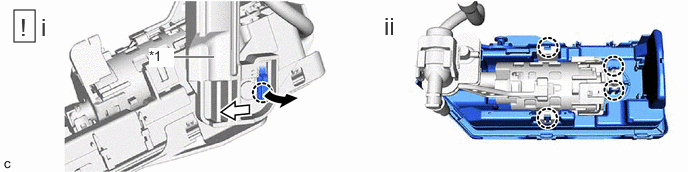

    1. GTY1074930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Suction Plate Sub-assembly - -
      Pull Slide
      1. Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.
      2. Disengage the 4 claws and remove the fuel sub-tank sub-assembly from the fuel suction plate sub-assembly.
  4. REMOVE NO. 2 FUEL SUCTION SUPPORT

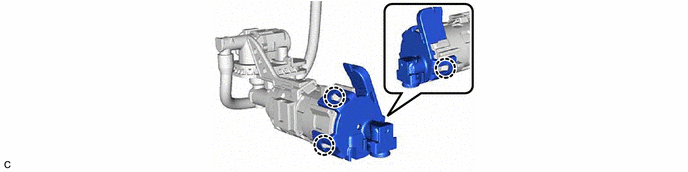

    1. GTY1000828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL PUMP
    1. GTY1001288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring *2 Fuel Pump Spacer
