This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [11/2021 - ]

COMPONENTS (INSTALLATION)

Fig 1: Fuel Pressure Sensor Installation Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	NO. 2 FUEL PRESSURE SENSOR	89458H	See step 1	-	-
2	NO. 2 FUEL PRESSURE SENSOR HOLDER	23851A	See step 2	-	-
3	FUEL PUMP LIFTER ASSEMBLY	23470	See step 3	-	-
4	FUEL PUMP SPACER GASKET	23224D	-	-	-
5	TEMPORARILY INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY	23100X	See step 5	-	-
6	TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY	23801P	See step 6	-	-
7	INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY	23100X	See step 7	-	-
8	INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY	23801P	See step 8	-	-
9	FUEL TUBE SUB-ASSEMBLY	23910A	See step 9	-	-
10	FUEL PIPE CLAMP	23841K	-	-	-
11	NO. 2 WATER BY-PASS PIPE	16278	See step 11	-	-
12	EGR VALVE ASSEMBLY	25620	-	-	-
13	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	-	-	-

*1	FUEL PUMP FLANGE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
*	For use with a union nut wrench	•	Non-reusable part

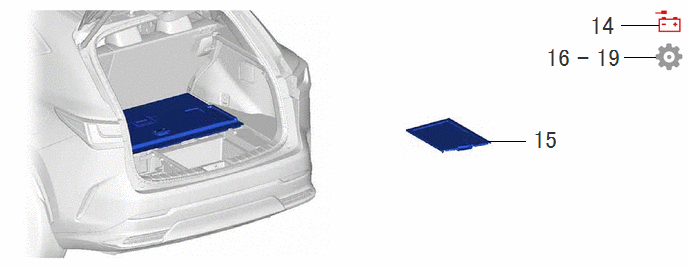

Fig 2: Fuel Pressure Sensor Installation Components (2 Of 2)

Callout - Procedure		Part Name Code
14	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
15	BATTERY SERVICE COVER PLATE	58491E	-	-	-
16	INSPECT FOR FUEL LEAK	-	-	-	See step 16
17	INSPECT FOR ENGINE OIL LEAK	-	-	-	See step 18
18	PERFORM INITIALIZATION	-	-	-	See step 18
19	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step 19
