Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. DISCHARGE FUEL SYSTEM PRESSURE

    See step  2

  3. REMOVE BATTERY SERVICE COVER PLATE

    Refer to PROCEDURE - Step 2

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  6. REMOVE NO. 2 WATER BY-PASS PIPE
    1. GTY1074456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp to disconnect the HV air conditioning wire.
      2. Slide the clip and disconnect the No. 8 water by-pass hose from the No. 2 water by-pass pipe.
      3. Using an 8 mm socket wrench, remove the 2 bolts and separate the No. 2 water by-pass pipe from the intake manifold.
      4. Remove the bolt and No. 2 water by-pass pipe from the cylinder block sub-assembly.
  7. REMOVE FUEL PIPE CLAMP
    1. GTY1074486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1076119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tube sub-assembly from the fuel (engine room side) pump assembly and fuel delivery pipe sub-assembly.

        Refer to PRECAUTION [11/2021 - ]

  9. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.
    1. GTY1075312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the ignition coil connector.
      2. Using an 8 mm socket wrench, remove the bolt.
      3. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      4. Loosen the 2 bolts of the fuel (engine room side) pump assembly.
      5. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe and fuel (engine room side) pump assembly.

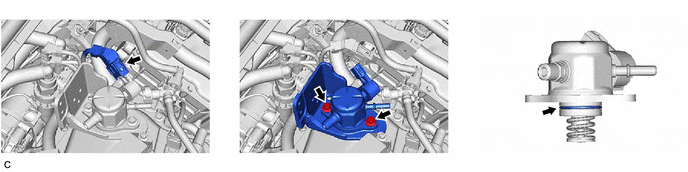

  10. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    NOTE:

    When replacing the fuel (engine room side) pump assembly, it is necessary to replace the No. 1 fuel pipe sub-assembly with a new one.
    1. GTY1075401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FUEL PUMP SPACER GASKET
    1. GTY997039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FUEL PUMP LIFTER ASSEMBLY
    1. GTY997034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
