NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

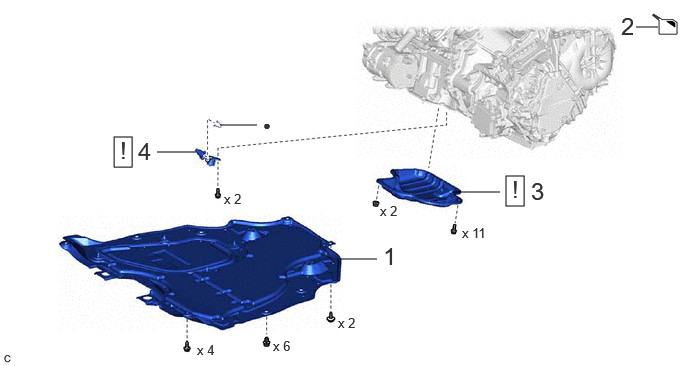

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 2 | DRAIN ENGINE OIL | - | - | See step 2 | - |
| 3 | NO. 2 OIL PAN SUB-ASSEMBLY | 12102A | See step 3 | - | - |
| 4 | ENGINE OIL LEVEL SENSOR | 89491 | See step 4 | - | - |
| • | Non-reusable part | - | - |
