NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

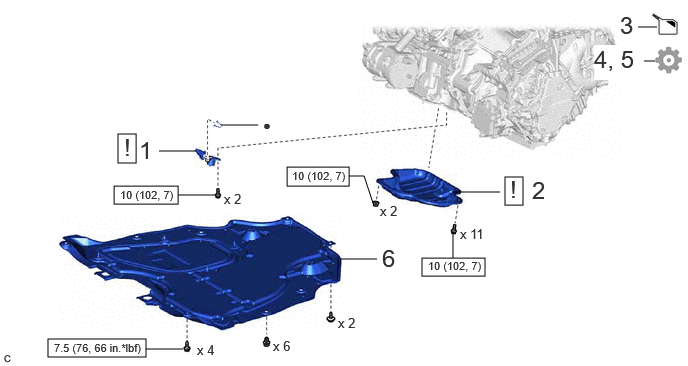

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | ENGINE OIL LEVEL SENSOR | 89491 | See step 1 | - | - |
| 2 | NO. 2 OIL PAN SUB-ASSEMBLY | 12102A | See step 2 | - | - |
| 3 | ADD ENGINE OIL | - | - | See step 3 | - |
| 4 | INSPECT FOR ENGINE OIL LEAK | - | - | - | See step 4 |
| 5 | CHECK ENGINE OIL LEVEL | - | - | - | See step 5 |
| 6 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
