DTC C060E-2A: Left Electric Parking Brake Actuator Signal Stuck In Range [11/2021 - ]: Procedure

1. Using the GTS, check for DTCs other than DTC C060E-2A.

   Chassis > Brake/EPB > Trouble Codes

   Result

   Result	Proceed to
   Only C060E-2A is output	A
   C060E-2A and other DTCs are output	B

Result:

B

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2021 - 03/2024]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [03/2024 - ]

Result:

A

See step  2

Pre-procedure1

1. Turn the ignition switch off.

   Procedure1

2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

   OK

   The connector is securely connected.

   Pre-procedure2

3. Disconnect the fG3 and f4 No. 2 parking brake wire assembly connectors.

   Procedure2

4. Check both the connector case and the terminals for deformation and corrosion.

   OK

   No deformation or corrosion.

   Procedure3

5. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

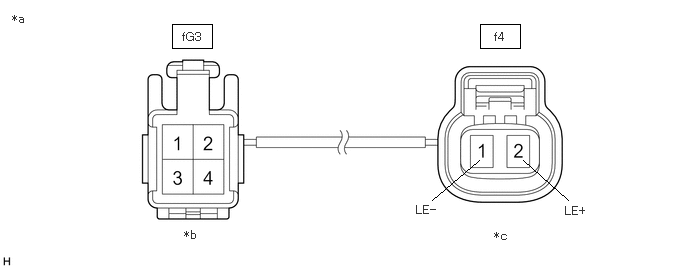

   *a	Front view of No. 2 Parking Brake Wire Assembly	*b	to wire harness connector
   *c	to Parking Brake Actuator Assembly LH	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   fG3-1 - f4-2 (LE+)	Always	Below 1 Ω
   fG3-1 or f4-2 (LE+) - Body ground and other terminals	Always	10 kΩ or higher
   fG3-2 - f4-1 (LE-)	Always	Below 1 Ω
   fG3-2 or f4-1 (LE-) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

6. None

Result:

NG

REPLACE NO. 2 PARKING BRAKE WIRE ASSEMBLY

Result:

OK

See step  3

Pre-procedure1

1. Turn the ignition switch off.
2. Make sure the No. 2 parking brake wire assembly is securely installed.
3. Disconnect the A38 No. 2 skid control ECU (brake actuator assembly) connector.
4. Disconnect the f4 parking brake actuator assembly LH connector.

   Procedure1

5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A38-3 (MRL+) - f4-2 (LE+)	Always	Below 1 Ω
   A38-2 (MRL-) - f4-1 (LE-)	Always	Below 1 Ω
   A38-3 (MRL+) or f4-2 (LE+) - Body ground	Always	10 kΩ or higher
   A38-2 (MRL-) or f4-1 (LE-) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

6. None

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Pre-procedure1

1. Enter rear brake pad replacement mode.

   HINT:

   Refer to REAR BRAKE PAD REPLACEMENT MODE [11/2021 - ]

2. Turn the ignition switch off.

   Procedure1

3. Check that the rotating parts are not seized or the actuator is not spinning freely.
   1. Check that the parking brake actuator assembly LH is installed properly to the rear brake caliper and that it is not spinning freely.

      HINT:

      For the parking brake actuator assembly LH removal procedure: Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]

   2. Check that there is no damage to the rotating parts from the parking brake actuator assembly LH to the rear brake caliper.
   3. Inspect the parking brake actuator assembly LH and check that it operates correctly.

      See step  1

   4. Check that the rear brake caliper threaded part rotates and that the rear disc brake piston moves outward.

      HINT:

      For the check procedures, refer to the parking brake forced release method when not using the GTS.

      Refer to OPERATION METHOD [11/2021 - ]

      Result

      Result	Proceed to
      Parking brake actuator assembly LH is malfunctioning	A
      Other than parking brake actuator assembly LH is malfunctioning	B

   Post-procedure1

4. Return to normal mode after work is complete.

   HINT:

   Refer to REAR BRAKE PAD REPLACEMENT MODE [11/2021 - ]

Result:

A

REPLACE PARKING BRAKE ACTUATOR ASSEMBLY LH. Refer to  REMOVAL [11/2021 - 03/2024]  , or refer to  REMOVAL [03/2024 - ]

Result:

B

REPAIR OR REPLACE ABNORMAL PARTS
