COMPONENTS (INSTALLATION)

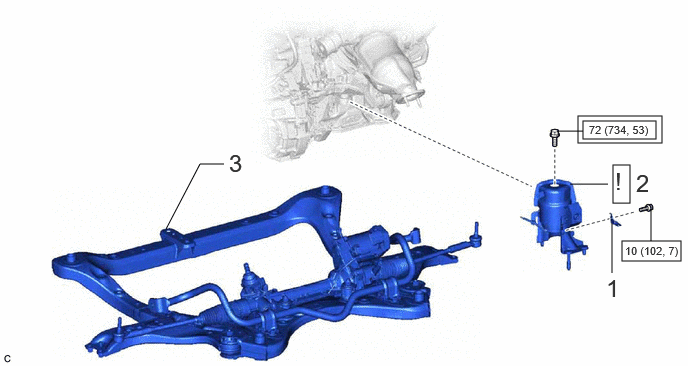

Fig 1: Active Control Engine Mount (For Rear Side) Installation Components With Torque Specifications
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | WIRE HARNESS CLAMP BRACKET | - | - | - | - |
| 2 | REAR ENGINE MOUNTING INSULATOR | 12371A | See step 2 | - | - |
| 3 | FRONT FRAME ASSEMBLY | 51100G | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
