COMPONENTS (INSTALLATION)

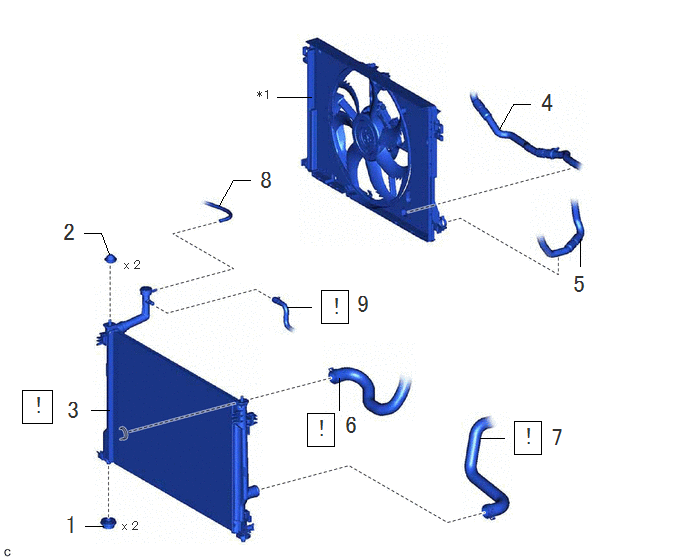

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | LOWER RADIATOR SUPPORT | 16535 | - | - | - |
| 2 | RADIATOR SUPPORT CUSHION | 16523A | - | - | - |
| 3 | RADIATOR ASSEMBLY | 16400 | See step 3 | - | - |
| 4 | NO. 5 INVERTER COOLING HOSE | G9229A | - | - | - |
| 5 | NO. 4 INVERTER COOLING HOSE | G9228A | - | - | - |
| 6 | NO. 2 RADIATOR HOSE | 16572D | See step 6 | - | - |
| 7 | NO. 1 RADIATOR HOSE | 16571C | See step 7 | - | - |
| 8 | NO. 6 WATER BY-PASS HOSE | 16283D | - | - | - |
| 9 | NO. 5 WATER BY-PASS HOSE | 16282F | See step 9 | - | - |
| *1 | FAN WITH MOTOR ASSEMBLY | - | - |

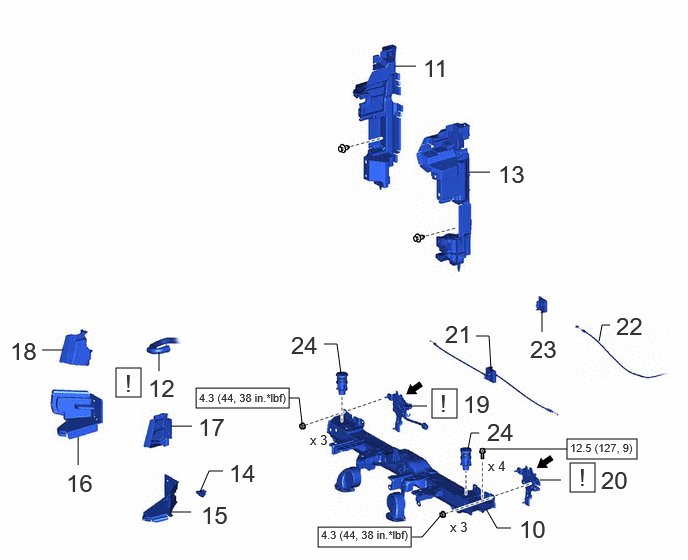

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 10 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | 53205 | - | - | - |
| 11 | NO. 1 RADIATOR AIR GUIDE RH | 16593B | - | - | - |
| 12 | NO. 3 INVERTER COOLING HOSE | G9227A | See step 12 | - | - |
| 13 | NO. 1 RADIATOR AIR GUIDE LH | 16595B | - | - | - |
| 14 | THERMISTOR ASSEMBLY | 88790B | - | - | - |
| 15 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | 16695A | - | - | - |
| 16 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH | 16691A | - | - | - |
| 17 | NO. 3 RADIATOR TO SUPPORT SEAL | 16563D | - | - | - |
| 18 | NO. 2 RADIATOR TO SUPPORT SEAL | 16562M | - | - | - |
| 19 | HOOD LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH | 53510H | See step 19 | - | - |
| 20 | HOOD LOCK ASSEMBLY LH | 53520B | See step 20 | - | - |
| 21 | HOOD LOCK CONTROL JUNCTION ASSEMBLY | 53640 | - | - | - |
| 22 | HOOD LOCK CONTROL CABLE AND LEVER SET | 53630D | - | - | - |
| 23 | HOOD LOCK CONTROL COVER | 53641A | - | - | - |
| 24 | HOOD SUPPORT TENSION SPRING | 53430A | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | MP grease |

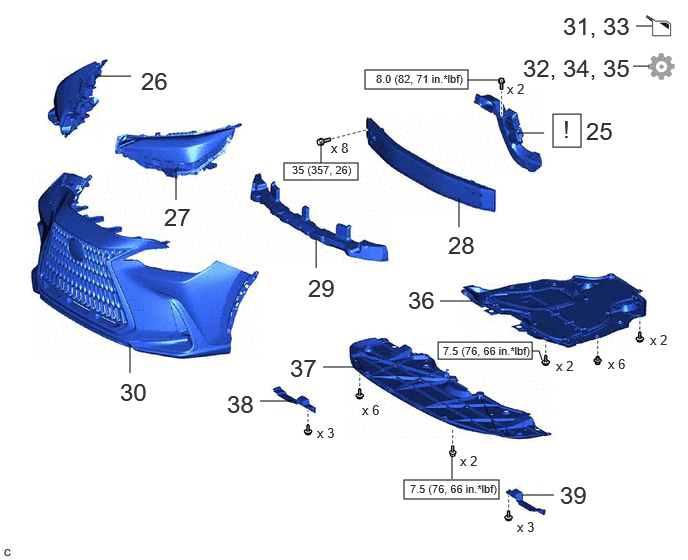

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 25 | INLET AIR CLEANER ASSEMBLY | 17750A | See step 25 | - | - |
| 26 | HEADLIGHT ASSEMBLY RH | - | - | - | - |
| 27 | HEADLIGHT ASSEMBLY LH | - | - | - | - |
| 28 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY | 52021 | - | - | - |
| 29 | FRONT NO. 2 BUMPER ENERGY ABSORBER | 52614 | - | - | - |
| 30 | FRONT BUMPER ASSEMBLY | - | - | - | - |
| 31 | ADD COOLANT (for Inverter) | - | - | See step 31 | - |
| 32 | INSPECT FOR COOLANT LEAK (for Inverter) | - | - | - | See step 32 |
| 33 | ADD ENGINE COOLANT (for Engine) | - | - | See step 33 | - |
| 34 | INSPECT FOR COOLANT LEAK (for Engine) | - | - | - | See step 34 |
| 35 | ADJUST HOOD SUB-ASSEMBLY | 53301 | - | - | See step 35 |
| 36 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 37 | NO. 1 ENGINE UNDER COVER | 51441 | - | - | - |
| 38 | FRONT FENDER FRONT SPLASH SHIELD RH | 53895B | - | - | - |
| 39 | FRONT FENDER FRONT SPLASH SHIELD LH | 53896B | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
