Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

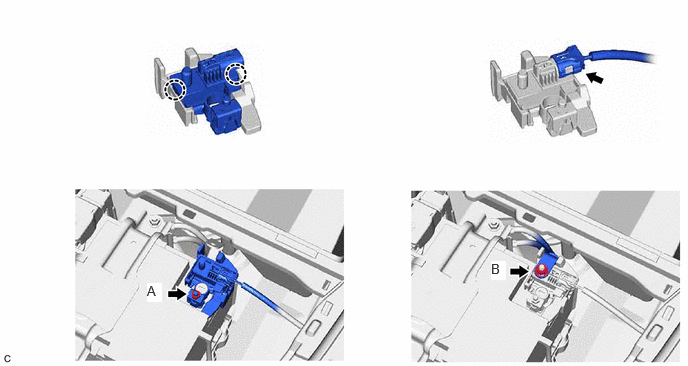

INSTALL BATTERY STATE SENSOR ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NUT (A)

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

NUT (B)

Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)

INSTALL BATTERY SERVICE COVER PLATE
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2021 - ]
