Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE NO. 1 INVERTER BRACKET
    See step  23
  3. REMOVE NO. 2 INVERTER BRACKET

    See step  24

  4. REMOVE WIRE HARNESS CLAMP BRACKET

    See step  25

  5. REMOVE WIRE HARNESS CLAMP BRACKET

    See step  26

  6. REMOVE WIRE HARNESS CLAMP BRACKET

    See step  27

  7. REMOVE HYBRID INVERTER PROTECTOR ASSEMBLY

    See step  28

  8. VERIFY THAT VOLTAGE OF INVERTER WITH CONVERTER IS 0 V
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.
    1. GTY1203724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the protective tape from the HV floor under wire opening.

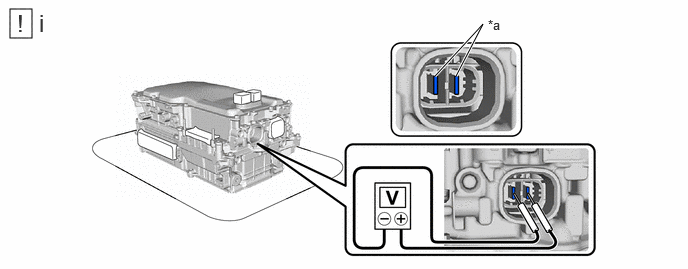

    2. GTY1204052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Voltage Measurement Position - -
      1. Using a voltmeter, measure the voltage between the high voltage cable connector terminals.

        Standard voltage

        0V

        HINT:

        • Use measuring range of DC 750 V or more on the voltmeter.
        • If it is confirmed that high-voltage is not being applied to the inverter with converter assembly, the following procedures can be performed without using insulated tools or gloves.
    3. GTY1203724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the area that was exposed.
        NOTE:

        Use non-residue type tape.

  9. CLEAN INVERTER WITH CONVERTER ASSEMBLY
    NOTE:

    To prevent foreign matter from entering the inverter with converter assembly, make sure that the protective tape is not partially removed.

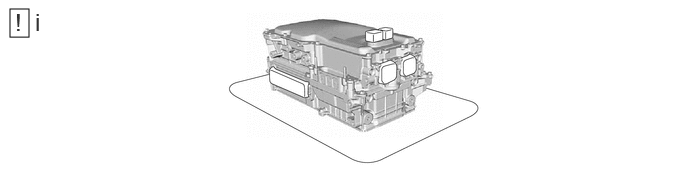

    1. GTY1204643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a piece of cloth, clean the outside of the inverter with converter assembly and around the bolts.
  10. HOW TO PREVENT STATIC ELECTRICITY
    NOTE:
    • Static electricity should be eliminated when removing/installing the inverter with converter assembly.
    • Do not touch the electronic components of a circuit board.
    • Keep clothes away from electronic components.
    • Place the inverter with converter assembly and any removed electronic components on SST (antistatic mat).
    1. GTY1204809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Wear an antistatic wrist strap.
        • SST: 09890-47010
      2. Connect the ground clip of the antistatic mat securely to a ground point provided in the workshop or on a workbench (anchor bolt).
      3. If the ground clip cable is too short, use an extension cable.
      4. Connect the ground clip of the antistatic wrist strap securely to the specified point of the antistatic mat.
      5. When handling internal components of the inverter with converter assembly, use only antistatic gloves or bare hands to prevent damage from static electricity or the entry of foreign matter.
  11. REMOVE INVERTER UPPER COVER
    1. GTY1204651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1203957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, remove the inverter upper cover from the inverter with converter assembly.
        NOTE:
        • Do not damage the sealing surfaces of the inverter with converter assembly.
          GTY1004066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *a OK
          *b NG
        • Do not touch or allow grease or oil to contact the sealing surfaces of the inverter with converter assembly.
        • Be careful not to damage the sealing surfaces of the inverter with converter assembly.
        • To prevent internal components of the inverter with converter assembly from being damaged, do not insert the screwdriver excessively.

        HINT:

        I f the upper inverter panel is difficult to remove, place a screwdriver in a gap under the upper inverter cover and remove. In this case also, pry with the screwdriver in the downward direction only.

  12. REMOVE SEAL PACKING FROM INVERTER WITH CONVERTER ASSEMBLY
    NOTE:
    • Do not allow any removed seal packing to enter the inverter with converter assembly.
    • Do not touch the circuit board.
    • Do not allow any moisture to come into contact.
    1. GTY1204647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a A-A Cross Section - -
      Push - -
      1. Using a finger, remove any seal packing that has seeped into the inverter with converter assembly.

        HINT:

        Make sure to remove any seal packing which has seeped toward the inside of inverter with converter assembly before installing the seal packing removal cover, otherwise the seal packing may be pushed into the inverter with converter assembly.

      2. Break off the seal packing removal cover and scraper at each break off line.
      3. Set the seal packing removal cover on the inverter with converter assembly and secure it by lightly pressing it at the 2 areas shown in the illustration.
        NOTE:

        Make sure that the seal packing removal cover is in secure contact with the inside surface of the inverter with converter assembly without any gaps.

    2. GTY1206222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a MG Connector Opening - -
      1. Place the inverter with converter assembly on its side on an antistatic mat as shown in the illustration.
        NOTE:
        • Make sure that the MG connector opening in the inverter with converter assembly is facing upward.
        • Make sure that the inverter with converter assembly is oriented correctly, otherwise seal packing may enter the inverter with converter assembly.
      2. Using a scraper, remove any remaining seal packing from the inverter with converter assembly.
        NOTE:
        • It is not necessary to remove small amounts of seal packing which are not easily scraped off.
          GTY686879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *a Correct *b Incorrect
          *c Width of Sealing Surface *d Difficult to Remove Seal Packing
          *e Peeled Off Seal Packing *f Seal Packing Remaining on Full Width of Sealing Surface
        • Make sure to use the scraper supplied with the seal packing removal cover.
          GTY731991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Using a clean piece of cloth, clean the sealing surfaces of the inverter with converter assembly.
        NOTE:
        • Do not use compressed air or a vacuum cleaner to clean the sealing surfaces of the inverter with converter assembly.
        • Do not use non-residue solvent to clean the sealing surfaces of the inverter with converter assembly.
    3. GTY1204917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the seal packing removal cover.
        NOTE:

        Make sure that the inverter with converter assembly is oriented correctly, otherwise seal packing may enter the inverter with converter assembly when removing the seal packing removal cover.

      2. Check for and remove any foreign matter which has entered the inverter with converter assembly.
      3. Set the inverter with converter assembly upright.
      4. Clean the seal packing removal cover.
      5. Install the seal packing removal cover to the inverter with converter assembly.
  13. REMOVE MOTOR GENERATOR CONTROL ECU KIT
    WARNING:

    To prevent foreign matter from entering the inverter with converter assembly, once the seal packing removal cover has been removed, work cannot be suspended until the motor generator control ECU kit is reinstalled.

    NOTE:
    • Do not touch the circuit board.
    • Do not allow any foreign matter or water to enter the inverter with converter assembly.
    1. GTY1204744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the 2 guide pins by hand at the positions shown in the illustration.
        NOTE:

        Make sure that the guide pins are tightened securely.

    2. GTY1205652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the seal packing removal cover.
    3. GTY1205411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Unlock Rib
      1. Check that the 4 screws of the circuit board replacement jig are unlocked, and then while holding the circuit board replacement jig by the ribs, align it with the guide pins and set it on the inverter with converter assembly.
      2. Make sure that circuit board replacement jig is perfectly level with the sealing surface.

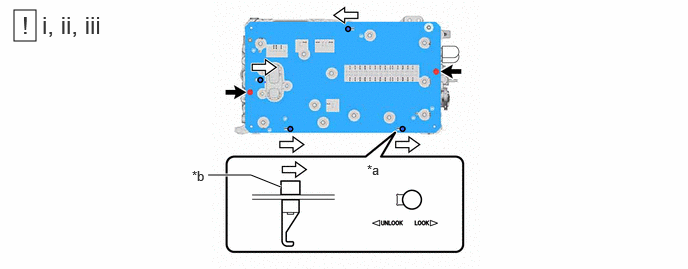

    4. GTY1204512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locked *b Knob
      Bolt Lock
      1. Secure the circuit board replacement jig with the 2 bolts supplied with the circuit board replacement jig.
        NOTE:

        Tighten the bolt by hand until the head contacts the jig.

      2. Lock the 4 screws as shown in the illustration to secure the circuit board replacement jig to the circuit board.
        NOTE:

        When locking the screws of the circuit board replacement jig, do not apply excessive force to the screws, otherwise the circuit board replacement jig may be damaged.

      3. Turn the 4 knobs of the circuit board replacement jig clockwise and secure the 4 screws of the circuit board replacement jig.
    5. for 2WD:

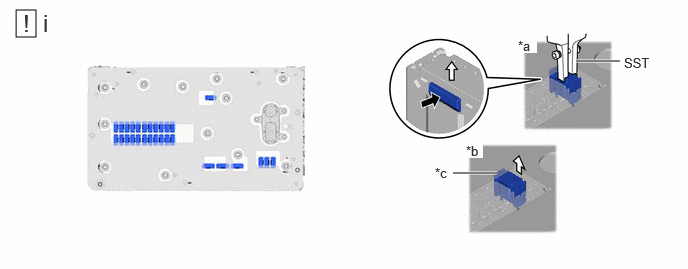

      GTY1203885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connected Vibration Dampening Connector *b Disconnected Vibration Dampening Connector
      *c Stopper of The Circuit Board Replacement Jig - -
      1. Using SST, release the lock of each vibration dampening connector and raise the 29 vibration dampening connectors until they reach the stopper of the circuit board replacement jig.
        • SST: 09905-00040
        NOTE:
        • When disconnecting the vibration dampening connectors, release the lock of each connector with SST and then carefully lift the connector the specified amount.
        • To prevent the vibration dampening connectors from being pulled up excessively, use both hands to raise them slowly as shown in the illustration.
          GTY708141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The position of the lock will vary depending on the position of the vibration dampening connector. Refer to the arrows on the circuit board replacement jig.

    6. for AWD:

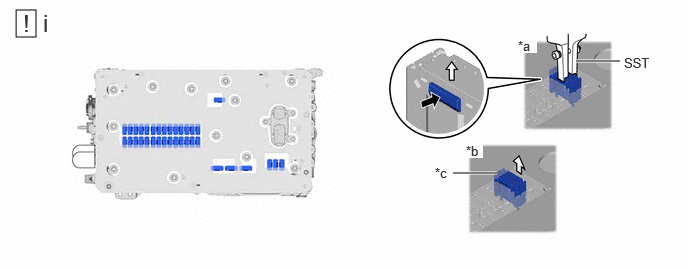

      GTY1205074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connected Vibration Dampening Connector *b Disconnected Vibration Dampening Connector
      *c Stopper of The Circuit Board Replacement Jig - -
      1. Using SST, release the lock of each vibration dampening connector and raise the 35 vibration dampening connectors until they reach the stopper of the circuit board replacement jig.
        • SST: 09905-00040
        NOTE:
        • When disconnecting the vibration dampening connectors, release the lock of each connector with SST and then carefully lift the connector the specified amount.
        • To prevent the vibration dampening connectors from being pulled up excessively, use both hands to raise them slowly as shown in the illustration.
          GTY708141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The position of the lock will vary depending on the position of the vibration dampening connector. Refer to the arrows on the circuit board replacement jig.

    7. GTY1204637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A) Bolt (B)
      1. Using the screwdriver supplied with the circuit board replacement jig, remove the 3 bolts (A).

        HINT:

        If the bolts are difficult to remove from the circuit board replacement jig, use a magnet hand.

      2. Using the screwdriver supplied with the circuit board replacement jig, remove the 12 bolts (B).

        HINT:

        If the bolts are difficult to remove from the circuit board replacement jig, use a magnet hand.

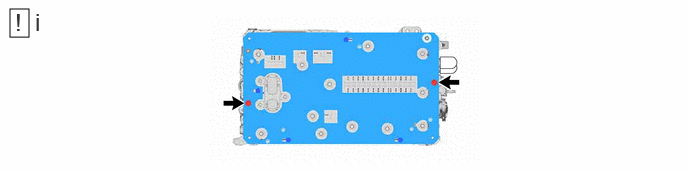

    8. GTY1204247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 inverter upper cover installation bolts.
    9. GTY1204592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rib - -
      1. While holding the circuit board replacement jig by the ribs, evenly lift the circuit board replacement jig and circuit board straight up and remove it.
    10. GTY1203549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Place the circuit board replacement jig upside down on a clean workbench.
    11. GTY1204807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct *b Incorrect
      *c Terminal - -
      1. Check that the terminals of the inverter with converter assembly are not bent or damaged and that it is free of foreign matter.
        NOTE:
        • Do not touch the terminals.
        • If any of the terminals are bent, replace the inverter with converter assembly with a new one. Do not attempt to repair the terminals.
    12. GTY1205133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold here *b Do not hold here
      *c Circuit Board *d Circuit Board Replacement Jig
      *e Knob - -
      Unlock - -
      1. Turn the 4 knobs of the circuit board replacement jig counterclockwise and release the 4 screws of the circuit board replacement jig.
      2. Unlock the 4 circuit board replacement jig screws, and then while holding the sides of the circuit board or the top and bottom of the circuit board at the areas shown in the illustration, lift the circuit board to remove it from the circuit board replacement jig.
        NOTE:

        Be careful not to touch any part of the circuit board other than the specified areas.
