The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during HV converter kit removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Replacement of inverter with converter assembly Resolver learning
  • DTCs are stored
  • Slight vibration at a vehicle speed of 5 km/h (3 mph) or less
  • Shock or vibration during acceleration
Refer to UTILITY [11/2021 - ]
Replacement of ECM Update ECU security key Vehicle Control History (RoB) are stored Refer to UPDATE ECU SECURITY KEY [11/2021 - ]
Perform Vehicle Identification Number (VIN) registration DTC is output Refer to REGISTRATION [11/2021 - ]
WARNING:
  • Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the repair information.
    GTY588409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2021 - ]

  • To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.
    GTY588386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to INSPECTION MODE PROCEDURE [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lighting System (EXT) Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [11/2021 - ]
Front Camera System
Adaptive High Beam System
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
E-latch System
  • Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2021 - ]
Power Back Door System Reset back door close position Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


COMPONENTS (REMOVAL)

Fig 1: Electric Vehicle Converter Removal Components (1 Of 2)
GTY1205598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 REMOVE INVERTER WITH CONVERTER ASSEMBLY G92A0 - - -
2 NO. 1 INVERTER BRACKET G9214 See step  2 - -
3 NO. 2 INVERTER BRACKET G9215 - - -
4 WIRE HARNESS CLAMP BRACKET - - - -
5 WIRE HARNESS CLAMP BRACKET - - - -
6 WIRE HARNESS CLAMP BRACKET - - - -
7 HYBRID INVERTER PROTECTOR ASSEMBLY G92D0 - - -
8 VERIFY THAT VOLTAGE OF INVERTER WITH CONVERTER IS 0 V - See step  8 - -
9 CLEAN INVERTER WITH CONVERTER ASSEMBLY G92A0 See step  9 - -

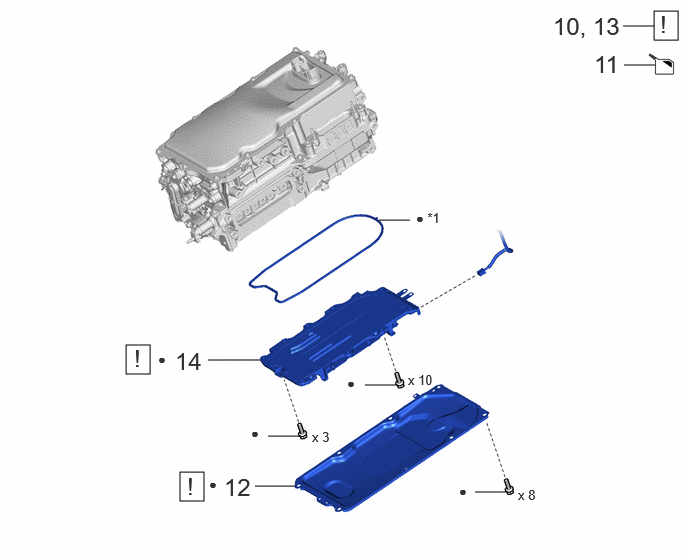

Fig 2: Electric Vehicle Converter Removal Components (2 Of 2)
GTY1204526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
10 HOW TO PREVENT STATIC ELECTRICITY - See step  10 - -
11 DRAIN COOLANT - - See step  11 -
12 CONVERTER COVER - See step  12 - -
13 REMOVE SEAL PACKING FROM INVERTER WITH CONVERTER ASSEMBLY - See step  13 - -
14 HV CONVERTER KIT - See step  14 - -
*1 O-RING - -
Non - reusable part - -
