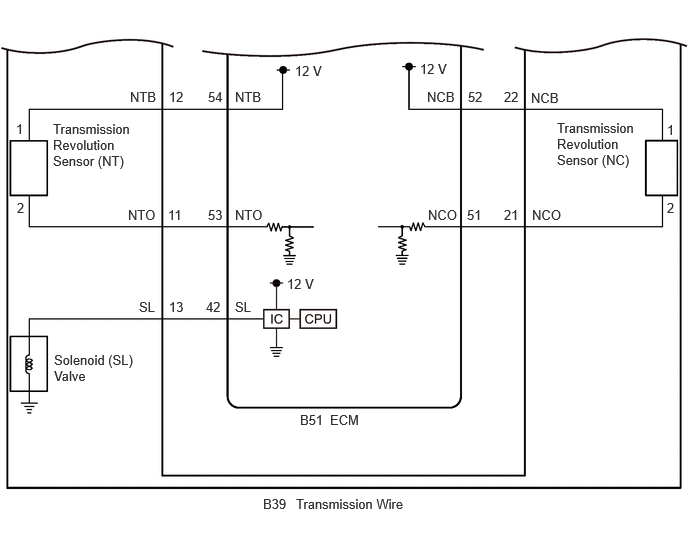

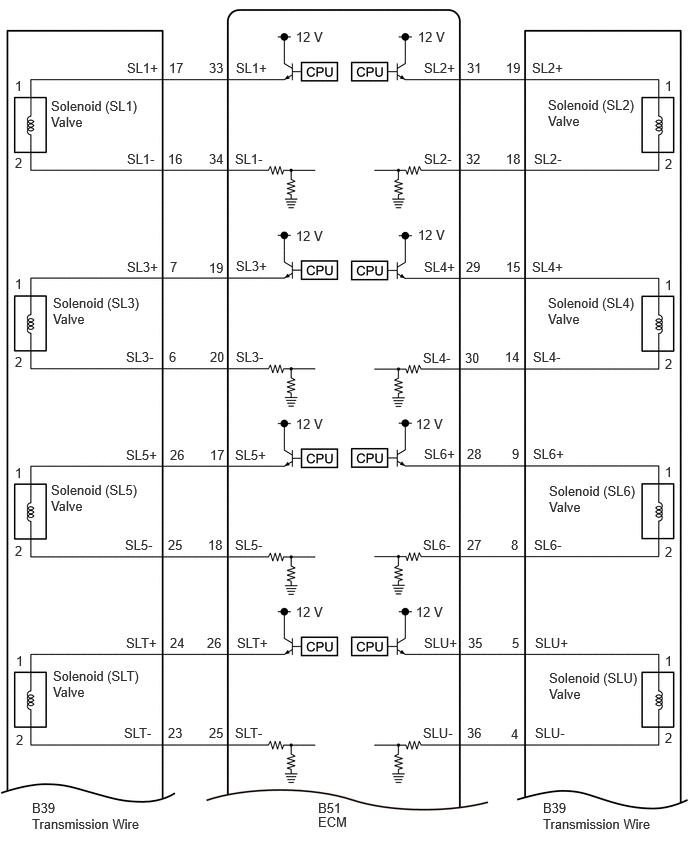

DTC P1702-9F: AT Solenoids Operation Shutdown Circuit Stuck Off [11/2021 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
