Shift Paddle Switch Circuit [11/2021 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

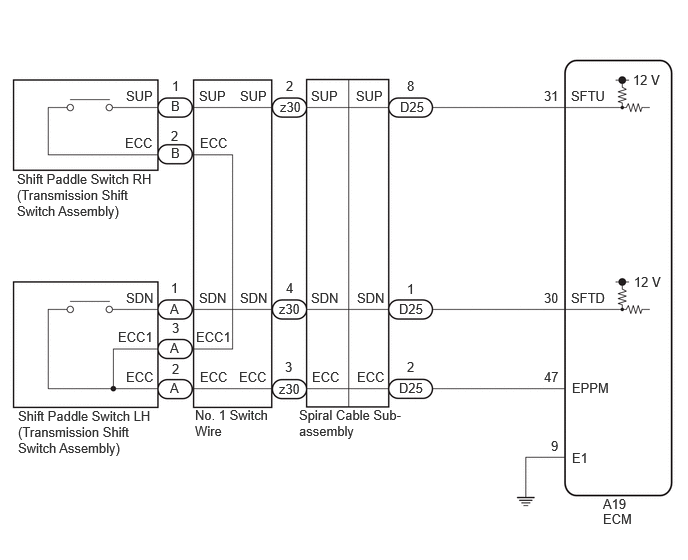

for Manual Tilt and Manual Telescopic Steering Column

GTY1063682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Power Tilt and Power Telescopic Steering Column

GTY1064471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
