Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed, or replaced during generator assembly removal/installation are shown below.

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) battery terminal.

Refer to INSPECTION MODE PROCEDURE [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lighting System (EXT)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2021 - ]
Front Camera System
Adaptive High Beam System
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	Refer to PRECAUTION [11/2021 - 03/2023] , or refer to PRECAUTION [03/2023 - 03/2024] , or refer to PRECAUTION [03/2024 - ]

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

Fig 1: Generator Removal Components (1 Of 2)

Callout - Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	NEGATIVE BATTERY TERMINAL	-	-	-	-
3	FRONT FENDER FRONT SPLASH SHIELD LH	53896B	-	-	-
4	FRONT FENDER FRONT SPLASH SHIELD RH	53895B	-	-	-
5	NO. 1 ENGINE UNDER COVER	51441	-	-	-

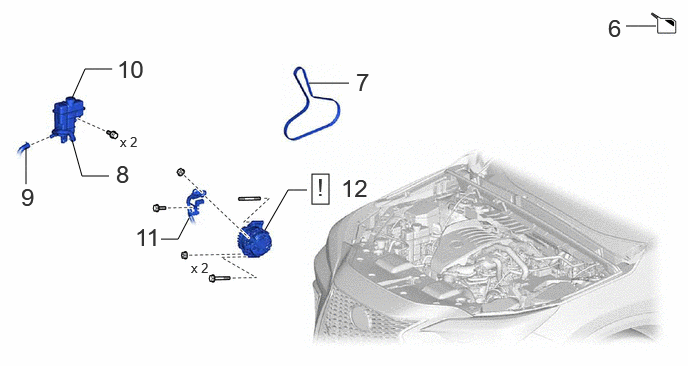

Fig 2: Generator Removal Components (2 Of 2)

Callout - Procedure		Part Name Code
6	DRAIN COOLANT (for Intercooler)	-	-	See step 6	-
7	V-RIBBED BELT	-	-	-	-
8	NO. 2 INTERCOOLER COOLING WATER HOSE	16552C	-	-	-
9	NO. 3 INTERCOOLER COOLING WATER HOSE	16553D	-	-	-
10	INTERCOOLER RESERVE TANK ASSEMBLY	16640	-	-	-
11	ENGINE WIRE	82121	-	-	-
12	GENERATOR ASSEMBLY	27060	See step 12	-	-
