DTC B279A-12: Engine Immobiliser System Circuit Short to Battery [11/2021 - ]: Procedure

1. Turn the ignition switch off.
2. Check that the connectors are properly connected to the hybrid vehicle control ECU and ID code box (immobiliser code ECU).

   OK

   Connectors are properly connected.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  2

1. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

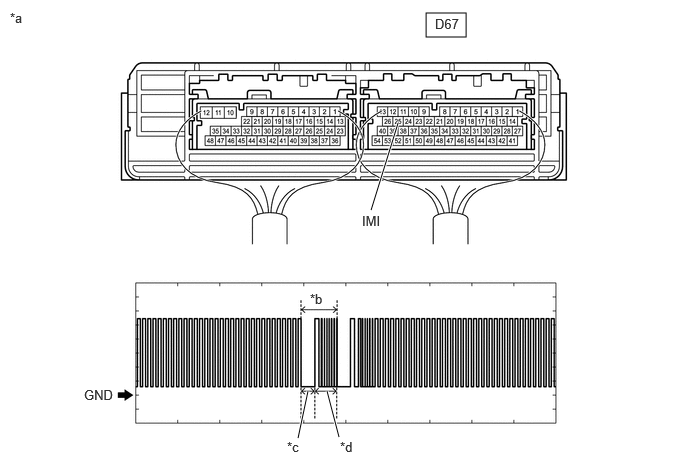

   *a	Component with harness connected (Hybrid Vehicle Control ECU)	*b	Waveform
   *c	Approximately 160 ms.	*d	Approximately 270 ms.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   D67-25 (IMI) - Body ground	Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform)

   Result

   Result	Proceed to
   11 to 14 V	A
   Below 1 V	B
   Normal waveform

Result:

B

REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

Result:

A

See step  3

1. Disconnect the D67 hybrid vehicle control ECU connector.
2. Disconnect the D62 ID code box (immobiliser code ECU) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D62-4 (EFIO) - D67-25 (IMI)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ID CODE BOX (IMMOBILISER CODE ECU). Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
