DTC B2275-11: Starter Circuit Short to Ground; DTC B2275-12: Starter Circuit Short to Battery [11/2021 - ]: Procedure

1. Turn the ignition switch to ON and wait 25 seconds.
2. Using the GTS, check for certification ECU (smart key ECU assembly) DTCs.

   Body Electrical > Power Source Control > Trouble Codes

   OK

   DTC B2285-62 is not output simultaneously.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO DTC B2285-62. Refer to  DTC B2285-62: Steering Lock Position Signal Compare Failure [11/2021 - 03/2023]  , or refer to  DTC B2285-62: Steering Lock Position Signal Compare Failure [03/2023 - ]

Result:

OK

See step  2

1. Disconnect the A10 certification ECU (smart key ECU assembly) connector.
2. Disconnect the D67 hybrid vehicle control ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A10-2 (ST2) - D67-4 (ST2)	Always	Below 1 Ω
   A10-2 (ST2) or D67-4 (ST2) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Connect the A10 certification ECU (smart key ECU assembly) connector.
2. Connect the D67 hybrid vehicle control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

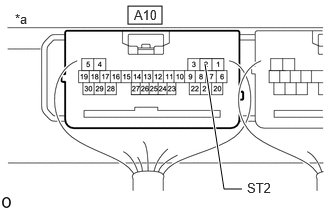

   *a	Component with harness connected (Certification ECU (Smart Key ECU Assembly))

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A10-2 (ST2) - Body ground	With the brake pedal depressed, the power switch is pressed and held	8.5 V or higher
   A10-2 (ST2) - Body ground	After approx. 3 sec. has elapsed, the power switch is released	1 V or less

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]
