Components [11/2021 - ]
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

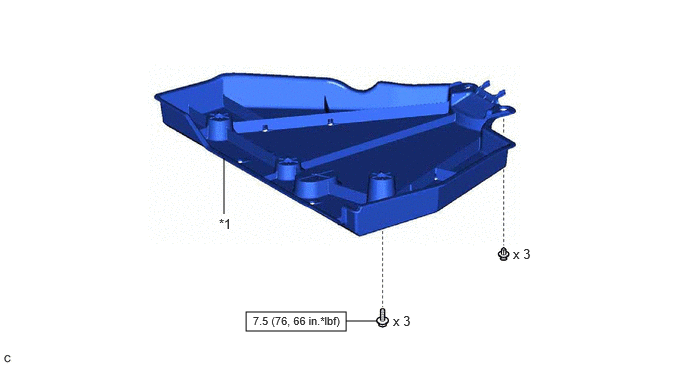

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 FLOOR UNDER COVER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

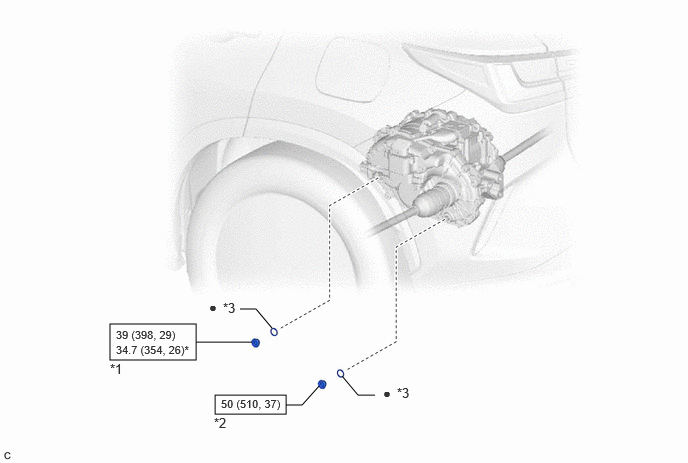

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FILLER PLUG |
*2 |
DRAIN PLUG |
| *3 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
