Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

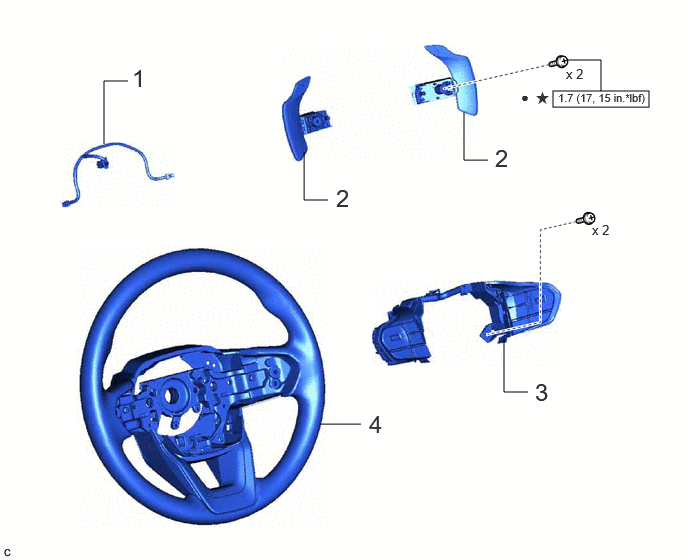

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 1 SWITCH WIRE | 84523 | - | - | - |
| 2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | 84610F | - | - | - |
| 3 | STEERING PAD SWITCH ASSEMBLY | 84250A | - | - | - |
| 4 | STEERING WHEEL ASSEMBLY | 45100 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
