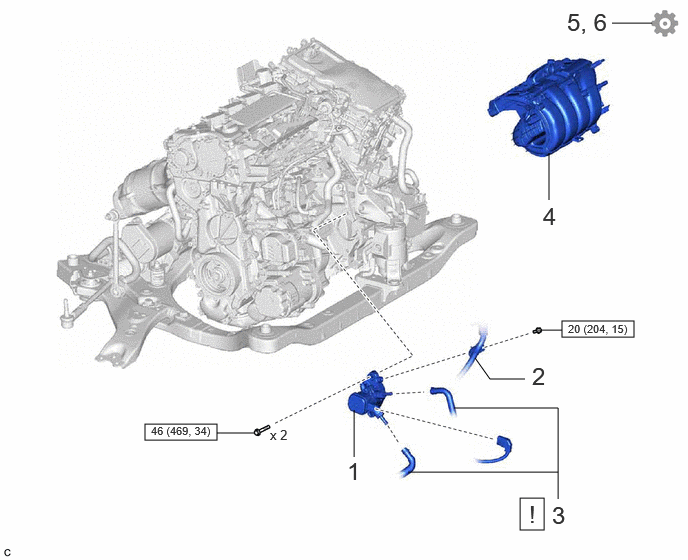

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | OIL PUMP WITH MOTOR ASSEMBLY | 35300B | - | - | - |
| 2 | WIRE HARNESS CLAMP BRACKET | - | - | - | - |
| 3 | NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY | 32930G | See step 3 | - | - |
| 4 | INTAKE MANIFOLD | 17111 | - | - | - |
| 5 | INSPECT HYBRID TRANSAXLE FLUID | - | - | - | See step 5 |
| 6 | INSPECT FOR HYBRID TRANSAXLE FLUID LEAK | - | - | - | See step 6 |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 7 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 8 | NO. 1 ENGINE UNDER COVER | 51441 | - | - | - |
| 9 | FRONT FENDER FRONT SPLASH SHIELD RH | 53895B | - | - | - |
| 10 | FRONT FENDER FRONT SPLASH SHIELD LH | 53896B | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
