Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE CONNECTOR COVER
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1064282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TERMINAL CAP
    WARNING:

    Be sure to wear insulated gloves.

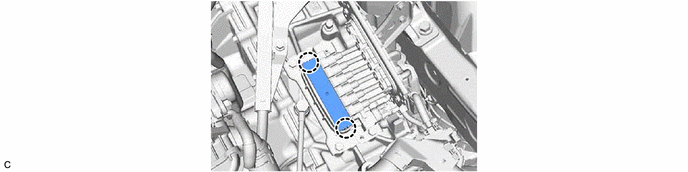

    1. GTY1064278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE MOTOR CABLE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Keep the motor cable terminals and their installation area free from foreign matter, water, etc.
    • Do not touch the waterproof seal or terminals of the motor cable.
    • Cover the hole where the motor cable was installed with tape or equivalent (non-residue type) to prevent entry of foreign matter.
    1. GTY1063275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal - -
      1. Using an insulated tool, remove the 6 bolts and motor cable from the hybrid vehicle transaxle assembly.
