Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

The engine assembly with hybrid vehicle transaxle assembly is very heavy. Be sure to follow the procedure described in the repair information, or the engine lifter may suddenly drop.



COMPONENTS (INSTALLATION)

Fig 1: Hybrid Vehicle Transaxle Installation Components With Torque Specifications [11/2021 - 03/2024] (1 Of 6)
GTY1064842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 TRANSAXLE HOUSING TUBE CONNECTOR 30900K See step  1 - -
2 TRANSAXLE BREATHER PLUG 30900N - - -
3 STUD BOLT - See step  3 - -
4 TRANSAXLE HOUSING PLUG - - - -
5 WIRE HARNESS CLAMP BRACKET - - - -
6 NO. 3 INVERTER BRACKET G9216 See step  6 - -
*1 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -
Fig 2: Hybrid Vehicle Transaxle Installation Components With Torque Specifications [11/2021 - 03/2024] (2 Of 6)
GTY1064738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
7 NO. 2 MOTOR COOLING PIPE G1252A See step  7 - -
8 NO. 2 TRANSMISSION OIL COOLER BRACKET 32913J See step  8 - -
9 NO. 4 MOTOR COOLING PIPE G1253 See step  9 - -
10 MOTOR COOLING COOLER G125A See step  10 - -
*A w/o Water Cooled *B w/ Water Cooled
*1 OIL COOLER UNION BOLT *2 GASKET
*3 NO. 1 MOTOR COOLING HOSE - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -
Fig 3: Hybrid Vehicle Transaxle Installation Components With Torque Specifications [11/2021 - 03/2024] (3 Of 6)
GTY1063816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
11 MOTOR CABLE G1148 See step  11 - -
12 TERMINAL CAP 82823M See step  12 - -
13 CONNECTOR COVER 82821T See step  13 - -
14 HYBRID VEHICLE TRANSAXLE ASSEMBLY 30900 See step  14 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -

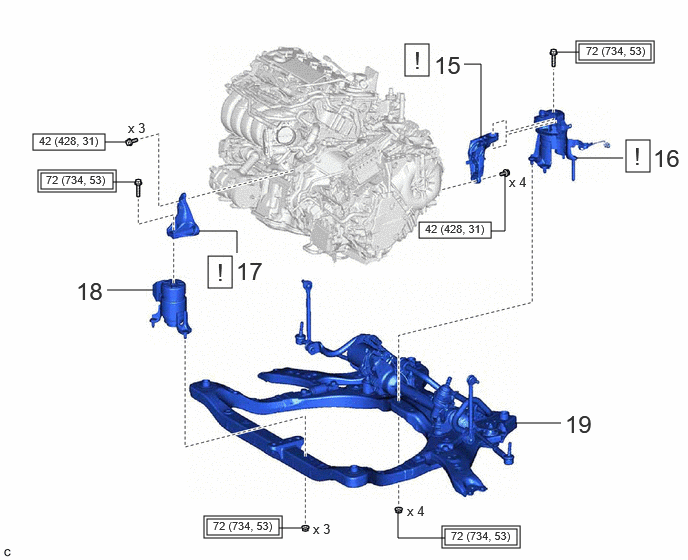

Fig 4: Hybrid Vehicle Transaxle Installation Components With Torque Specifications [11/2021 - 03/2024] (4 Of 6)
GTY1063577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
15 REAR ENGINE MOUNTING BRACKET 12303 See step  15 - -
16 REAR ENGINE MOUNTING INSULATOR 12371A See step  16 - -
17 FRONT ENGINE MOUNTING BRACKET 12311A See step  17 - -
18 FRONT ENGINE MOUNTING INSULATOR 12361A - - -
19 FRONT FRAME ASSEMBLY 51100G - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Fig 5: Hybrid Vehicle Transaxle Installation Components With Torque Specifications [11/2021 - 03/2024] (5 Of 6)
GTY1064440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
20 FLYWHEEL HOUSING SIDE COVER 11363A - - -
21 OIL PUMP WITH MOTOR ASSEMBLY 35300B - - -
22 WIRE HARNESS CLAMP BRACKET - - - -
23 NO. 1 MOTOR COOLING PIPE G1251B See step  23 - -
24 NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY 32930G See step  24 - -
25 TRANSAXLE UNDER STOPPER BRACKET 33185B See step  25 - -
*1 NO. 2 OIL COOLER TUBE CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with a union nut wrench • Non-reusable part
Fig 6: Hybrid Vehicle Transaxle Installation Components With Torque Specifications [11/2021 - 03/2024] (6 Of 6)
GTY1063596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
26 HV AIR CONDITIONING WIRE 821H2 - - -
27 ENGINE WIRE 82121 See step  27 - -
28 STEERING GEAR HEAT INSULATOR 45319 See step  28 - -
29 ENGINE ASSEMBLY WITH TRANSAXLE - - - -
30 PERFORM RESOLVER LEARNING - - - See step  30
N.m (kgf/cm, ft.lbf): Specified torque - -
